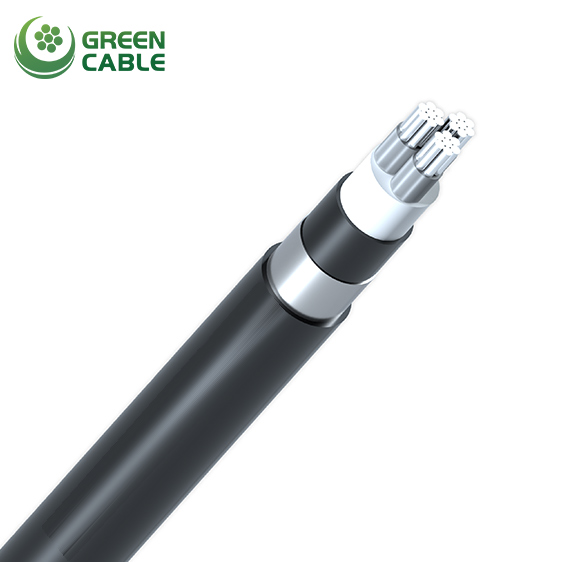

0.6/1kV AL/XLPE/STA/PVC Power Cables

Cables may be used in power stations, industry and switchgear as well as for urban supply networks, where with low risk of mechanical damage. Suitable for Installation indoors, cable trunking, outdoors and buried in the ground and in duct.

Send Massage Get Price

Construction

Conductor : Copper or Aluminum Class 2 stranded conductors

Insulation: Cross-linked polyethylene XLPE

Armor: Steel-tape

Over sheath: Polyvinyl chloride PVC or PE

Standards

IEC 60228, IEC 60502-1

LV Power Cables - Copper Conductor IEC 60502-1
XLPE Insulated Cable	YJV (N2XY)	CU/XLPE/PVC
	YJY (N2X2Y)	CU/XLPE/PE
	YJV22 (N2XBY)	CU/XLPE/STA/PVC
	YJV23 (N2XB2Y)	CU/XLPE/STA/PE
	YJV32 (N2XRY)	CU/XLPE/SWA/PVC
	YJV33 (N2XR2Y)	CU/XLPE/SWA/PE
LV Power Cables - Aluminum Conductor IEC 60502-1
XLPE Insulated Cable	YJLV (NA2XY)	AL/XLPE/PVC
	YJLY (NA2X2Y)	AL/XLPE/PE
	YJLV22 (NA2XBY)	AL/XLPE/STA/PVC
	YJLV23 (NA2XB2Y)	AL/XLPE/STA/PE
	YJLV32 (NA2XRY)	AL/XLPE/SWA/PVC
	YJLV33 (NA2XR2Y)	AL/XLPE/SWA/PE

0.6/1KV XLPE/PVC Power cable (steel tape armored) YJV22, YJLV22

Conductor dimensions (mm2)	Insulation thickness (mm)	Steel tape armoured cable
		PVC bedding thickness				Armored wire Outer diameter				Sheath thickness				Outer diameter (approximate)				Cable weight (approximate) (Kg/km)				Cable weight (approximate) (Kg/km)
		mm				mm				mm				mm				Copper core				Aluminum core
		2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C
1.5	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	11.8	12.2	12.9	13.7	215	236	274	308	196	208	237	261
2.5	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	12.6	13.0	13.9	14.8	250	281	333	378	218	234	271	300
4	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	13.5	14.1	15.0	16.1	296	346	412	475	246	271	312	351
6	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	14.5	15.2	16.2	17.4	361	424	513	597	286	312	363	410
10	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	16.8	17.6	19.0	20.5	492	600	737	866	366	411	485	552
16	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	19.0	20.0	21.6	23.5	663	840	1032	1225	462	538	629	722
25	0.9	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	21.8	23.0	25.0	27.3	910	1162	1450	1740	595	690	821	954
35	0.9	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.9	24.2	25.6	27.9	30.7	1155	1506	1861	2265	715	845	980	1164
50	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.9	2.0	27.0	28.6	31.5	34.7	1507	1947	2510	3067	877	1003	1252	1494
70	1.1	0.9	0.9	0.9	1.2	0.2	0.2	0.2	0.5	1.9	2.0	2.1	2.2	24.0	27.7	32.0	40.0	1809	2531	3304	4549	927	1207	1539	2342
95	1.1	0.9	1.2	1.2	1.2	0.2	0.5	0.5	0.5	2.0	2.2	2.3	2.4	27.0	33.1	38.2	44.1	2347	3673	4764	5877	1149	1876	2368	2882
120	1.2	1.2	1.2	1.2	1.2	0.5	0.5	0.5	0.5	2.2	2.3	2.4	2.6	32.0	36.4	41.0	48.7	3256	4507	5815	7249	1743	2238	2789	3466
150	1.4	1.2	1.2	1.4	1.4	0.5	0.5	0.5	0.5	2.3	2.4	2.6	2.7	34.8	40.0	45.6	54.5	3951	5509	7189	8953	2060	2672	3406	4225
185	1.6	1.2	1.2	1.4	1.4	0.5	0.5	0.5	0.5	2.4	2.6	2.7	2.9	40.6	44.4	50.4	62.8	4844	6701	8734	10990	2511	3202	4068	5158
240	1.7	1.4	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.6	2.7	2.9	3.1	45.8	51.6	57.5	67.3	6127	8563	11100	13794	3100	4023	5047	6228
300	1.8	1.4	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.8	2.9	3.1	3.4	50.6	54.3	63.6	72.6	7408	10400	13640	16907	3622	4719	6067	7440
400	2.0		1.4	1.4			0.5	0.5			3.2	3.4			61.4	72.6			13550	17825			5976	7727
500			1.4				0.5				3.4				78.4				17038				7571

0.6/1KV XLPE/PVC Power cable (steel tape armored) YJV22, YJLV22

Conductor dimensions (mm2)		Insulation thickness (mm)		Steel tape armoured cable
				PVC bedding thickness			Armored wire outer diameter			Sheath thickness			Outer diameter (approximate)			Cable weight (approximate) (Kg/km)			Cable weight (approximate) (Kg/km)
				mm			mm			mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	13.9	14.6	15.1	254	280	307	—	—	—
4	2.5	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	15.2	15.8	16.3	322	357	381	232	251	266
6	4.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	16.4	17.1	17.6	410	461	491	273	299	316
10	6.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	18.6	19.8	20.4	582	655	718	356	392	429
16	10.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	21.0	22.3	23.0	834	943	1036	469	516	570
25	16.0	0.9	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	24.5	26.3	27.3	1198	1374	1506	625	700	776
35	16.0	0.9	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	24.2	27.5	27.6	1477	1655	1896	722	805	921
50	25.0	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	1.9	1.9	2.0	28.7	31.1	32.4	2052	2351	2657	950	1092	1241
70	35.0	1.1	0.9	0.9	0.9	1.2	0.2	0.2	0.5	2.0	2.1	2.2	31.9	35.9	38.3	2775	3186	3621	1231	1421	1635
95	50.0	1.1	1.0	1.2	1.2	1.2	0.5	0.5	0.5	2.2	2.3	2.3	37.1	41.7	42.6	3756	4333	4784	1645	1907	2073
120	70.0	1.2	1.1	1.2	1.2	1.2	0.5	0.5	0.5	2.3	2.4	2.5	40.2	45.5	47.5	4724	5514	6053	2013	2362	2585
150	70.0	1.4	1.1	1.2	1.2	1.4	0.5	0.5	0.5	2.5	2.5	2.6	43.8	50.2	52.3	5684	6479	7351	2406	2759	3126
185	95.0	1.6	1.1	1.4	1.4	1.4	0.5	0.5	0.5	2.6	2.7	2.8	49.8	55.7	57.7	7098	8147	9089	3000	3450	3824
240	120.0	1.7	1.2	1.4	1.4	1.4	0.5	0.5	0.5	2.8	2.9	3.0	57.4	62.8	64.5	9075	10362	11586	3779	4309	4776
300	150.0	1.8	1.4	1.4	1.4	1.4	0.5	0.5	0.5	3.0	3.1	3.2	62.3	73.5	75.6	11216	12895	14381	4590	5324	5862
400	185.0	2.0	1.6	1.4	1.4	1.4	0.5	0.5	0.8	3.3	3.4	3.6	74.0	81.2	76.2	14688	16680	18656	5948	6774	7391
