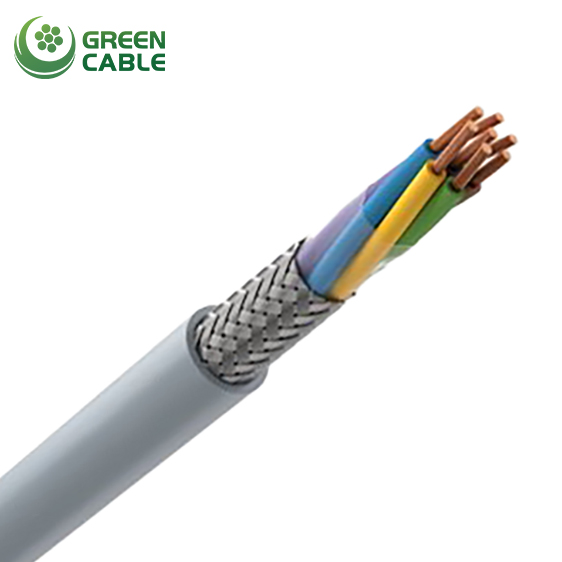

LiHCH Cable

LiHCH Cables are multi-core halogen-free screened control cables suitable for indoor use in industrial applications such as data transmission between electronic devices in computer systems or process control units with increased requirements for electromagnetic compatibility. They are generally used in flexible or stationary applications with low mechanical and tensile stress as connecting cables for applications including electrical apparatus for office and laboratory use. The voltage rating for LiHCH cables is 250V and their operating temperature range is from -30℃ to +70℃ when used in fixed installations.

Send Massage Get Price

Construction

Conductor: fine stranded copper conductor, class 5, in compliance with DIN VDE 0295

Insulation: slow fuel - based on the polyolefin or the corresponding synthetic polymers.

Separator: Polyester foil.

Screen: tinned copper wire braid.

Sheath: slow fuel - based on the polyolefin or the corresponding synthetic polymers.

Standards

DIN VDE 0295

NUMBER OF CORE AND	OVERALL DIAMETER	COPPER WEIGHT	APPROX. CABLE WEIGHT	STANDARD LENGTH
CROSS SECTION (mm2)	(mm)	(kg/km)	(kg/km)	(mt)
2 x 0,22	4,20	11	26	100/500/1000
3 x 0,22	4,30	13	29	100/500/1000
4 x 0,22	4,70	15	39	100/500/1000
5 x 0,22	5,00	17	44	100/500/1000
6 x 0,22	5,30	22	50	100/500/1000
8 x 0,22	5,60	25	61	100/500/1000
10 x 0,22	6,70	30	79	100/500/1000
12 x 0,22	7,10	35	90	100/500/1000
14 x 0,22	7,40	40	100	100/500/1000
16 x 0,22	7,70	45	104	100/500/1000
18 x 0,22	8,00	50	110	100/500/1000
20 x 0,22	8,30	52	121	100/500/1000
2 x 0,34	4,60	17	30	100/500/1000
3 x 0,34	4,80	20	36	100/500/1000
4 x 0,34	5,20	25	46	100/500/1000
5 x 0,34	5,60	31	56	100/500/1000
6 x 0,34	5,90	34	63	100/500/1000
8 x 0,34	6,20	38	76	100/500/1000
10 x 0,34	7,60	43	96	100/500/1000
12 x 0,34	7,90	51	109	100/500/1000
14 x 0,34	8,20	60	120	100/500/1000
16 x 0,34	8,70	68	132	100/500/1000
18 x 0,34	9,20	75	144	100/500/1000
20 x 0,34	9,60	84	161	100/500/1000
2 x 0,50	5,40	17	33	100/500/1000
3 x 0,50	5,60	21	54	100/500/1000
4 x 0,50	6,20	27	67	100/500/1000
5 x 0,50	6,90	31	78	100/500/1000
6 x 0,50	7,40	36	90	100/500/1000
7 x 0,50	7,40	42	98	100/500/1000
8 x 0,50	7,70	45	104	100/500/1000
10 x 0,50	9,60	56	135	100/500/1000
12 x 0,50	9,70	68	150	100/500/1000
14 x 0,50	10,10	75	164	100/500/1000
16 x 0,50	10,70	83	185	100/500/1000
18 x 0,50	11,20	95	203	100/500/1000
20 x 0,50	11,60	102	217	100/500/1000
2 x 0,75	5,80	18	56	100/500/1000
3 x 0,75	6,10	30	67	100/500/1000
4 x 0,75	6,70	35	81	100/500/1000
5 x 0,75	7,40	43	99	100/500/1000
6 x 0,75	8,00	51	109	100/500/1000
7 x 0,75	8,00	56	115	100/500/1000
8 x 0,75	8,40	64	128	100/500/1000
10 x 0,75	10,20	80	162	100/500/1000
12 x 0,75	10,50	94	184	100/500/1000
14 x 0,75	11,00	107	206	100/500/1000
16 x 0,75	11,60	120	230	100/500/1000
18 x 0,75	12,60	143	267	100/500/1000
20 x 0,75	13,00	155	285	100/500/1000
2 x 1	6,20	28	64	100/500/1000
3 x 1	6,70	37	80	100/500/1000
4 x 1	7,20	46	95	100/500/1000
5 x 1	7,90	56	114	100/500/1000
6 x 1	8,50	66	131	100/500/1000
7 x 1	8,50	74	140	100/500/1000
8 x 1	9,20	83	160	100/500/1000
10 x 1	10,90	104	195	100/500/1000
12 x 1	11,30	121	222	100/500/1000
14 x 1	12,20	139	262	100/500/1000
16 x 1	12,40	156	291	100/500/1000
18 x 1	13,60	175	326	100/500/1000
20 x 1	14,00	195	350	100/500/1000
2 x 1,5	6,80	34	76	100/500/1000
3 x 1,5	7,10	48	93	100/500/1000
4 x 1,5	7,70	61	111	100/500/1000
5 x 1,5	8,50	75	136	100/500/1000
6 x 1,5	8,70	88	158	100/500/1000
7 x 1,5	8,70	100	170	100/500/1000
8 x 1,5	9,80	113	194	100/500/1000
10 x 1,5	12,20	151	248	100/500/1000
12 x 1,5	12,50	166	283	100/500/1000
14 x 1,5	13,10	191	321	100/500/1000
16 x 1,5	13,90	216	363	100/500/1000
18 x 1,5	14,50	245	402	100/500/1000
20 x 1,5	15,50	268	437	100/500/1000
