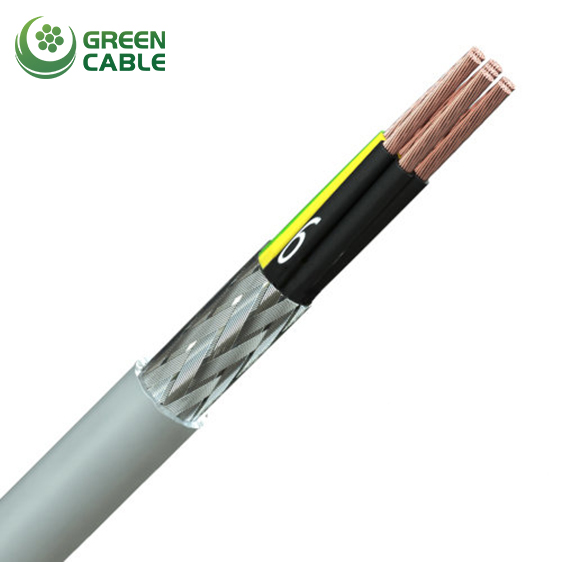

LiYCY Cable

LiYCY Cables are flexible multicore flame retardant screened signal and data transmission cables designed for indoor applications with increased requirements for electromagnetic compatibility such as process control units and computer systems.

The voltage rating for LiYCY cables with a cross-section of up to 0.14mm2 is 350V. Larger cross-sections have a voltage rating of 500V. They operate in a temperature range of -40℃ to +80℃ when used in fixed installations and -5℃ to +50℃ in flexible installations.

Send Massage Get Price

Construction

Conductor : bare copper strands with reference to VDE 0812
Insulation : PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code : with reference to DIN 47100
Stranding : in layers
Wrapping : PETP foil
Screen : tinned copper braiding
Sheath material : PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour : grey (RAL 7032)

Standards

Generally to BS EN 50363-3 VDE 0207-363-4-1

LiYCY Cable

no. of cores x cross section	outer-ø ± 5%	copper figure	cable weight ca.
2 x 0,14 mm²	3,6 mm	12,6 kg/km	18 kg/km
3 x 0,14 mm²	3,8 mm	14,1 kg/km	21 kg/km
4 x 0,14 mm²	4 mm	15,9 kg/km	24 kg/km
5 x 0,14 mm²	4,3 mm	19,5 kg/km	29 kg/km
6 x 0,14 mm²	4,6 mm	22 kg/km	33 kg/km
7 x 0,14 mm²	4,6 mm	24 kg/km	33 kg/km
8 x 0,14 mm²	5,4 mm	26 kg/km	44 kg/km
10 x 0,14 mm²	5,8 mm	29 kg/km	47 kg/km
12 x 0,14 mm²	6,2 mm	32 kg/km	55 kg/km
14 x 0,14 mm²	6,4 mm	35 kg/km	61 kg/km
16 x 0,14 mm²	6,7 mm	49 kg/km	69 kg/km
18 x 0,14 mm²	7 mm	54 kg/km	75 kg/km
20 x 0,14 mm²	7,3 mm	58 kg/km	82 kg/km
21 x 0,14 mm²	7,6 mm	60 kg/km	87 kg/km
24 x 0,14 mm²	8 mm	74 kg/km	92 kg/km
25 x 0,14 mm²	8,6 mm	78 kg/km	102 kg/km
27 x 0,14 mm²	8,6 mm	85 kg/km	106 kg/km
30 x 0,14 mm²	8,8 mm	98 kg/km	116 kg/km
32 x 0,14 mm²	9,1 mm	108 kg/km	122 kg/km
36 x 0,14 mm²	9,4 mm	117 kg/km	133 kg/km
40 x 0,14 mm²	10 mm	126 kg/km	148 kg/km
44 x 0,14 mm²	10,6 mm	138 kg/km	168 kg/km
48 x 0,14 mm²	10,8 mm	145 kg/km	177 kg/km
50 x 0,14 mm²	11 mm	150 kg/km	183 kg/km
52 x 0,14 mm²	11 mm	155 kg/km	187 kg/km
56 x 0,14 mm²	11,3 mm	166 kg/km	202 kg/km
61 x 0,14 mm²	11,6 mm	176 kg/km	213 kg/km
1 x 0,25 mm²	2,7 mm	8 kg/km	13 kg/km
2 x 0,25 mm²	3,9 mm	15 kg/km	23 kg/km
3 x 0,25 mm²	4,1 mm	18 kg/km	26 kg/km
4 x 0,25 mm²	4,4 mm	22 kg/km	31 kg/km
5 x 0,25 mm²	4,9 mm	25 kg/km	38 kg/km
6 x 0,25 mm²	5,3 mm	30 kg/km	45 kg/km
7 x 0,25 mm²	5,3 mm	32 kg/km	46 kg/km
8 x 0,25 mm²	6,1 mm	35 kg/km	59 kg/km
9 x 0,25 mm²	6,5 mm	39 kg/km	67 kg/km
10 x 0,25 mm²	6,6 mm	42 kg/km	65 kg/km
12 x 0,25 mm²	6,8 mm	50 kg/km	73 kg/km
14 x 0,25 mm²	7,1 mm	64 kg/km	81 kg/km
15 x 0,25 mm²	7,4 mm	68 kg/km	90 kg/km
16 x 0,25 mm²	7,4 mm	71 kg/km	91 kg/km
18 x 0,25 mm²	7,8 mm	80 kg/km	102 kg/km
20 x 0,25 mm²	8,5 mm	96 kg/km	117 kg/km
21 x 0,25 mm²	8,8 mm	105 kg/km	125 kg/km
24 x 0,25 mm²	9,3 mm	115 kg/km	133 kg/km
25 x 0,25 mm²	9,5 mm	117 kg/km	139 kg/km
27 x 0,25 mm²	9,5 mm	120 kg/km	145 kg/km
30 x 0,25 mm²	9,8 mm	132 kg/km	157 kg/km
32 x 0,25 mm²	10,1 mm	138 kg/km	166 kg/km
36 x 0,25 mm²	10,7 mm	152 kg/km	195 kg/km
40 x 0,25 mm²	11,3 mm	164 kg/km	217 kg/km
44 x 0,25 mm²	11,8 mm	180 kg/km	229 kg/km
48 x 0,25 mm²	12,4 mm	209 kg/km	254 kg/km
50 x 0,25 mm²	12,7 mm	222 kg/km	262 kg/km
52 x 0,25 mm²	12,7 mm	234 kg/km	269 kg/km
56 x 0,25 mm²	13 mm	259 kg/km	288 kg/km
61 x 0,25 mm²	13,4 mm	287 kg/km	306 kg/km
2 x 0,34 mm²	4,5 mm	17 kg/km	29 kg/km
3 x 0,34 mm²	4,9 mm	21 kg/km	35 kg/km
4 x 0,34 mm²	5,3 mm	25 kg/km	43 kg/km
5 x 0,34 mm²	5,7 mm	30 kg/km	52 kg/km
6 x 0,34 mm²	6,4 mm	37 kg/km	64 kg/km
7 x 0,34 mm²	6,4 mm	42 kg/km	65 kg/km
8 x 0,34 mm²	7,2 mm	45 kg/km	81 kg/km
10 x 0,34 mm²	7,8 mm	63 kg/km	89 kg/km
12 x 0,34 mm²	8 mm	70 kg/km	100 kg/km
14 x 0,34 mm²	8,8 mm	78 kg/km	121 kg/km
16 x 0,34 mm²	9,2 mm	87 kg/km	134 kg/km
18 x 0,34 mm²	9,7 mm	108 kg/km	150 kg/km
20 x 0,34 mm²	10,1 mm	124 kg/km	163 kg/km
21 x 0,34 mm²	10,7 mm	127 kg/km	185 kg/km
24 x 0,34 mm²	11,3 mm	140 kg/km	200 kg/km
27 x 0,34 mm²	11,5 mm	151 kg/km	216 kg/km
30 x 0,34 mm²	11,9 mm	162 kg/km	233 kg/km
32 x 0,34 mm²	12,7 mm	171 kg/km	257 kg/km
36 x 0,34 mm²	13,2 mm	188 kg/km	285 kg/km
40 x 0,34 mm²	14 mm	208 kg/km	316 kg/km
42 x 0,34 mm²	14 mm	215 kg/km	326 kg/km
44 x 0,34 mm²	14,6 mm	223 kg/km	334 kg/km
48 x 0,34 mm²	14,8 mm	243 kg/km	355 kg/km
50 x 0,34 mm²	15,8 mm	248 kg/km	402 kg/km
52 x 0,34 mm²	15,8 mm	273 kg/km	412 kg/km
56 x 0,34 mm²	16,2 mm	292 kg/km	437 kg/km
61 x 0,34 mm²	16,7 mm	316 kg/km	464 kg/km
1 x 0,50 mm²	3,2 mm	13,3 kg/km	19 kg/km
2 x 0,50 mm²	5 mm	23,5 kg/km	36 kg/km
3 x 0,50 mm²	5,2 mm	28,4 kg/km	42 kg/km
4 x 0,50 mm²	5,6 mm	35,1 kg/km	51 kg/km
5 x 0,50 mm²	6,3 mm	41,6 kg/km	64 kg/km
6 x 0,50 mm²	6,8 mm	48,3 kg/km	75 kg/km
7 x 0,50 mm²	6,8 mm	53,1 kg/km	78 kg/km
8 x 0,50 mm²	7,8 mm	62 kg/km	99 kg/km
10 x 0,50 mm²	8,8 mm	74,5 kg/km	115 kg/km
12 x 0,50 mm²	9 mm	84,2 kg/km	128 kg/km
14 x 0,50 mm²	9,4 mm	93,5 kg/km	143 kg/km
16 x 0,50 mm²	9,9 mm	105,9 kg/km	162 kg/km
18 x 0,50 mm²	10,6 mm	133,9 kg/km	191 kg/km
20 x 0,50 mm²	11,1 mm	143,8 kg/km	208 kg/km
21 x 0,50 mm²	11,6 mm	154,9 kg/km	224 kg/km
24 x 0,50 mm²	12,6 mm	169,7 kg/km	248 kg/km
25 x 0,50 mm²	12,8 mm	174,6 kg/km	256 kg/km
27 x 0,50 mm²	12,8 mm	184,2 kg/km	269 kg/km
30 x 0,50 mm²	13,2 mm	203,6 kg/km	293 kg/km
32 x 0,50 mm²	13,7 mm	213,5 kg/km	311 kg/km
36 x 0,50 mm²	14,2 mm	239 kg/km	344 kg/km
40 x 0,50 mm²	15,8 mm	289,4 kg/km	416 kg/km
42 x 0,50 mm²	15,8 mm	299 kg/km	429 kg/km
50 x 0,50 mm²	17 mm	349,7 kg/km	487 kg/km
52 x 0,50 mm²	17 mm	359,3 kg/km	500 kg/km
61 x 0,50 mm²	18 mm	403,7 kg/km	565 kg/km
1 x 0,75 mm²	3,5 mm	15,7 kg/km	22 kg/km
2 x 0,75 mm²	5,6 mm	30,3 kg/km	45 kg/km
3 x 0,75 mm²	6,1 mm	37,6 kg/km	56 kg/km
4 x 0,75 mm²	6,6 mm	46,5 kg/km	68 kg/km
5 x 0,75 mm²	7,1 mm	55,7 kg/km	83 kg/km
6 x 0,75 mm²	7,7 mm	66,8 kg/km	99 kg/km
7 x 0,75 mm²	7,7 mm	74 kg/km	103 kg/km
8 x 0,75 mm²	9,2 mm	83,8 kg/km	136 kg/km
10 x 0,75 mm²	10 mm	101,1 kg/km	150 kg/km
12 x 0,75 mm²	10,5 mm	133,9 kg/km	183 kg/km
14 x 0,75 mm²	11 mm	148,5 kg/km	203 kg/km
16 x 0,75 mm²	11,5 mm	169,2 kg/km	231 kg/km
18 x 0,75 mm²	12,4 mm	184 kg/km	264 kg/km
21 x 0,75 mm²	13,6 mm	211 kg/km	307 kg/km
24 x 0,75 mm²	14,4 mm	239,1 kg/km	333 kg/km
27 x 0,75 mm²	14,7 mm	260,9 kg/km	363 kg/km
30 x 0,75 mm²	15,8 mm	313,4 kg/km	428 kg/km
32 x 0,75 mm²	16,3 mm	328,3 kg/km	453 kg/km
36 x 0,75 mm²	16,9 mm	357,8 kg/km	496 kg/km
1 x 1,00 mm²	3,6 mm	18,2 kg/km	25 kg/km
2 x 1,00 mm²	5,8 mm	35,2 kg/km	50 kg/km
3 x 1,00 mm²	6,3 mm	46,4 kg/km	64 kg/km
4 x 1,00 mm²	6,8 mm	57,9 kg/km	79 kg/km
5 x 1,00 mm²	7,4 mm	69,6 kg/km	96 kg/km
6 x 1,00 mm²	8 mm	81,3 kg/km	113 kg/km
7 x 1,00 mm²	8 mm	90,9 kg/km	120 kg/km
1 x 1,50 mm²	3,8 mm	24,7 kg/km	31 kg/km
2 x 1,50 mm²	6,5 mm	46,5 kg/km	68 kg/km
3 x 1,50 mm²	6,8 mm	62,7 kg/km	79 kg/km
4 x 1,50 mm²	7,4 mm	79,2 kg/km	98 kg/km
5 x 1,50 mm²	8,6 mm	95,8 kg/km	131 kg/km
6 x 1,50 mm²	9,3 mm	112,7 kg/km	155 kg/km
7 x 1,50 mm²	9,3 mm	127,1 kg/km	164 kg/km
