CNE cables are used for power supplies with Protective Multiple Earthing (PME) systems, where a combined Protective Earth (PE) and Neutral (N) - together known as the PEN - connects the combined neutral-and-earth to real earth at multiple locations to reduce the risk of electric shock in the event of a broken PEN.

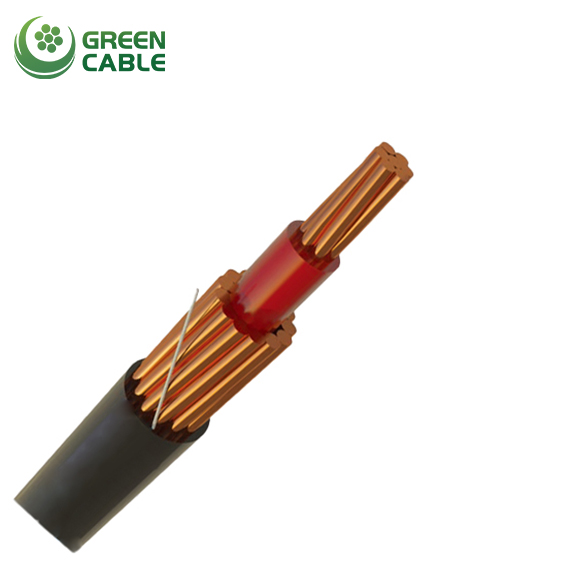

Centre phase core, Galv.steel + tinned Cu stranded, red XLPE insulated UV stable phase core, concentric layer bare tinned Cu + GSW, UV stable PE or XLPE outer sheath black or orange.
|
size |
Phase conductor |
XLPE INSULATION |
Earth conductor |
PE sheath |
Approx. Weight |
||||
|
Structure |
O.D |
Thickness |
O.D |
Structure |
O.D |
Thickness |
O.D |
||
|
mm² |
No./mm |
mm |
mm |
mm |
No./mm |
mm |
mm |
mm |
Kg/km |
|
4 |
7/0.92 |
2.76 |
1.0 |
5.97 |
8/0.85 |
6.46 |
1.4 |
9.41 |
131 |
|
10 |
7/1.35 |
4.05 |
1.0 |
5.22 |
18/0.85 |
7.75 |
1.4 |
10.70 |
240 |
