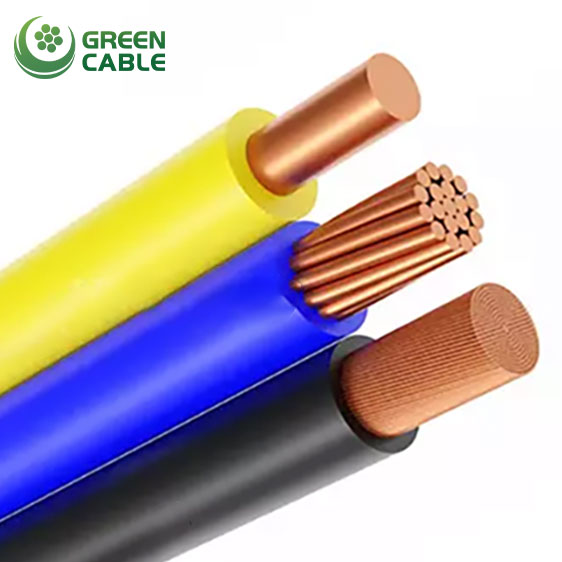

H05V-K cable is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications. It can be used in and at electronic appliances for measuring, regulating and controlling. The cables are also ideal for laying in pipes, surface wiring and conduit installations. Specifications according to HD 516 apply for respective specific applications.
H05V-U cable is intended for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
H05V-R cable is preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.
Conductor: annealed copper conductor acc. to EN 60228:
class 1 solid -H05V-U
class 2 stranded H05V-R
class 5 flexible H05V-K
Insulation: PVC compound type TI 1
Color of insulation: blue, black, brown, green/yellow or other colors
BS EN 50525-2-31
|
CONSTRUCTION mm2 |
OUTER DIAMETER mm |
Cu WEIGHT kg / km |
CABLE WEIGHT kg / km |
|
1 x 1.5 |
3 |
14,4 |
20 |
|
1 x 2.5 |
3,6 |
24 |
30 |
|
1 x 4 |
4,1 |
38 |
50 |
|
1 x 6 |
4,6 |
58 |
65 |
|
1 x 10 |
6 |
96 |
110 |
|
1 x 16 |
7 |
154 |
165 |
|
1 x 25 |
8,5 |
240 |
242 |
|
1 x 35 |
9,9 |
336 |
350 |
|
1 x 50 |
11,7 |
480 |
482 |
|
1 x 70 |
11,7 |
672 |
662 |
|
1 x 95 |
15,3 |
912 |
885 |
|
1 x 120 |
16,8 |
1152 |
1123 |
|
1 x 150 |
19,2 |
1440 |
1390 |
|
1 x 185 |
21,3 |
1776 |
1733 |
|
1 x 240 |
23,8 |
2304 |
2264 |
|
AWG |
No. of Cores x Nominal Cross Sectional Area x mm² |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
|
20 |
1 x 0.5 |
2.1 |
4.8 |
9 |
|
18 |
1 x 0.75 |
2.2 |
7.2 |
11 |
|
17 |
1 x 1 |
2.4 |
9.6 |
14 |
|
16 |
1 x 1.5 |
2.9 |
14.4 |
21 |
|
14 |
1 x 2.5 |
3.5 |
24 |
33 |
|
12 |
1 x 4 |
3.9 |
38 |
49 |
|
10 |
1 x 6 |
4.5 |
58 |
69 |
|
8 |
1 x 10 |
5.7 |
96 |
115 |
|
AWG |
No. of Cores x Nominal Cross Sectional Area mm² |
Nominal Overall Diameter(mm) |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
|
20(7/29) |
1 x 0.5 |
2.2 |
4.8 |
9 |
|
18(7/27) |
1 x 0.75 |
2.4 |
7.2 |
12 |
