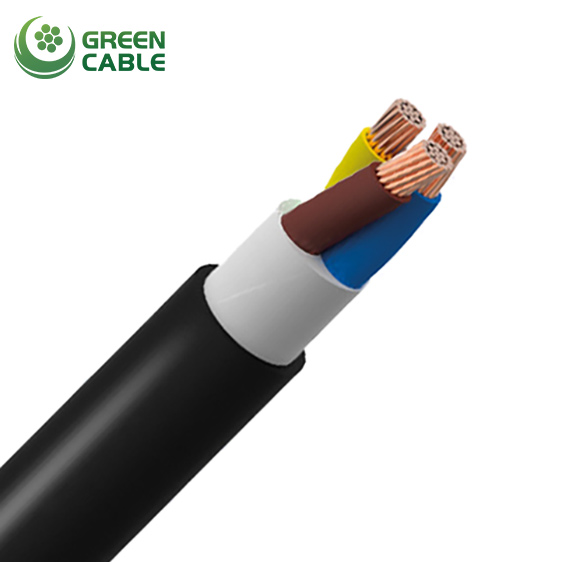

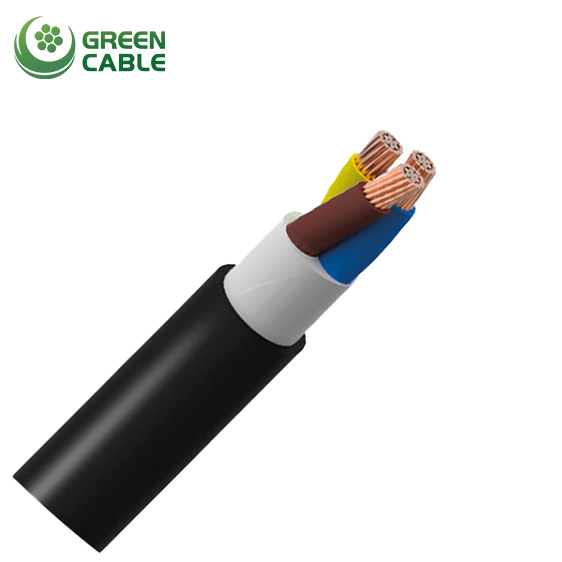

(N)SHÖU O/J cable suitable for mining applications alongside conveyor belts, for energy supply to equipment in movement, industrial apparatus and submersed pumps.
Copper/Rubber Compound/Heavy Duty Rubber Compound.
VDE 0250 Part 812, VDE 0295, EN 60228.
Flame Retardant according to IEC/EN 60332-1-2.
Or other standards on customer’s request.
|
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm² |
CONDUCTOR DIAMETER mm |
MINIMUM OVERALL DIAMETER mm |
MAXIMUM OVERALL DIAMETER mm |
MAXIMUM TENSILE LOAD N |
|
3 |
1.5 |
1.5 |
9.7 |
10.3 |
68 |
|
3 |
2.5 |
1.9 |
11.1 |
11.7 |
113 |
|
3 |
4 |
2.4 |
13.2 |
13.8 |
180 |
|
3 |
6 |
2.9 |
14.4 |
15 |
270 |
|
3 |
10 |
3.8 |
17.4 |
18.5 |
450 |
|
3 |
16 |
4.8 |
19.5 |
20.6 |
720 |
|
3 |
25 |
6.1 |
23.7 |
24.8 |
1125 |
|
3 |
35 |
7.2 |
26.6 |
27.7 |
1575 |
|
3 |
50 |
8.9 |
31.8 |
33 |
2250 |
|
3 |
70 |
10.6 |
35.3 |
36.5 |
3150 |
|
3 |
95 |
12.3 |
40.9 |
42.6 |
4275 |
|
3 |
120 |
13.8 |
43.4 |
45.1 |
5400 |
|
3 |
150 |
15.5 |
47.8 |
49.5 |
6750 |
|
3 |
185 |
17 |
53.1 |
55.4 |
8325 |
|
4 |
1.5 |
1.5 |
10.5 |
11.1 |
90 |
|
4 |
2.5 |
1.9 |
12.9 |
13.5 |
150 |
|
4 |
4 |
2.4 |
14.3 |
14.9 |
240 |
|
4 |
6 |
2.9 |
15.7 |
16.3 |
360 |
|
4 |
10 |
3.8 |
19.1 |
20.2 |
600 |
|
4 |
16 |
4.8 |
22 |
23.1 |
960 |
|
4 |
25 |
6.1 |
27 |
28.1 |
1500 |
|
4 |
35 |
7.2 |
29.2 |
30.4 |
2100 |
|
4 |
50 |
8.9 |
35 |
36.2 |
3000 |
|
4 |
70 |
10.6 |
38.8 |
40.5 |
4200 |
|
4 |
95 |
12.3 |
45.1 |
46.8 |
5700 |
|
4 |
120 |
13.8 |
50 |
51.8 |
7200 |
|
4 |
150 |
15.5 |
55 |
57.3 |
9000 |
|
4 |
185 |
17 |
61 |
63.3 |
11100 |
