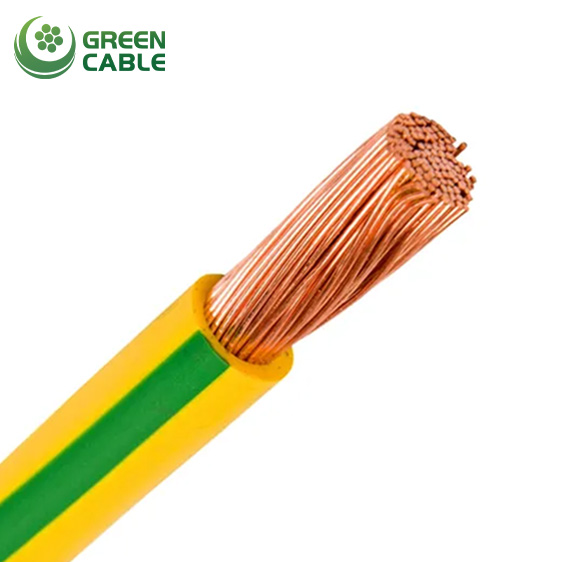

TW/THW Wire

TW/THW is most often used in general purpose wiring circuits, for machine tool wiring and the internal wiring of appliances. Common applications include control panels, wiring for refrigeration equipment, air-conditioning equipment, control wiring of machine tools, automatic washers, etc. It can be used in dry locations up to 90°C (ampacity is limited to 75°C conductor temperature per NFPA 79); or wet locations or other applicable locations when exposed to oil or coolant at temperatures up to 60°C. CSA Type TEW rating permits use in dry locations up to 105°C; or wet locations or other applicable locations when exposed to oil or coolant at temperatures up to 60°C. Our standard circuit size (#10, 12, 14 awg) products are marked Style 1015,Maximum voltage rating 600 V

Send Massage Get Price

Construction

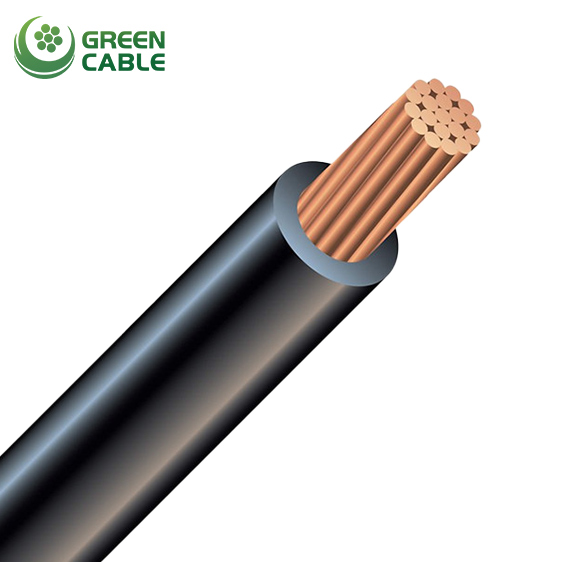

TW/THW is a solid or stranded, soft annealed copper conductor insulated with Polyvinylchloride (PVC). It is UL rated for 600 volts. #10, 12, and 14 AWG are 19 strands, all others are “highly flexible” stranding constructions.

Standards

UL 83, UL 1581

Size	Construction		Conductor Dia.	Insulation Thickness	Approx. Overall Dia.	Approx.Weight
	No. of Wires	Dia. of Wires				Approx.Weight
	No. of Wires	Dia. of Wires				TW	THW
AWG/Kcmil	No.	mm	mm	mm	mm	kg/km	kg/km
14	1	1.63	1.63	0.77	3.17	26.8	26.8
12	1	2.06	2.06	0.77	3.60	38.7	38.7
10	1	2.59	2.59	0.77	4.13	58.1	58.1
8	1	3.27	3.27	1.15	5.57	96.8	96.8
14	7	0.62	1.86	0.77	3.40	28.3	28.3
12	7	0.78	2.34	0.77	3.88	41.7	41.7
10	7	0.98	2.94	0.77	4.48	62.5	62.5
8	7	1.24	3.72	1.15	6.02	102.7	102.7
6	7	1.56	4.68	1.53	7.74	165.2	166.7
4	7	1.96	5.88	1.53	8.94	247.1	248.6
2	7	2.48	7.44	1.53	10.50	375.1	376.6
1/0	19	1.89	9.20	2.04	13.28	589.4	592.3
2/0	19	2.13	10.34	2.04	14.42	732.2	735.2
3/0	19	2.39	11.61	2.04	15.69	904.9	909.3
4/0	19	2.68	13.01	2.04	17.09	1120.7	1123.6
250	37	2.09	14.20	2.42	19.04	1334.9	1339.4
300	37	2.29	15.55	2.42	20.39	1583.5	1587.9
350	37	2.47	16.79	2.42	21.63	1824.6	1830.5
400	37	2.64	17.96	2.42	22.80	2068.6	2074.6
500	37	2.95	20.05	2.42	24.89	2553.8	2559.7
600	61	2.52	22.00	2.80	27.60	3016.4	3021.0
750	61	2.82	24.64	2.80	30.24	3817.3	3824.7
1000	61	3.25	28.40	2.80	34.00	5007.8	5018.2
