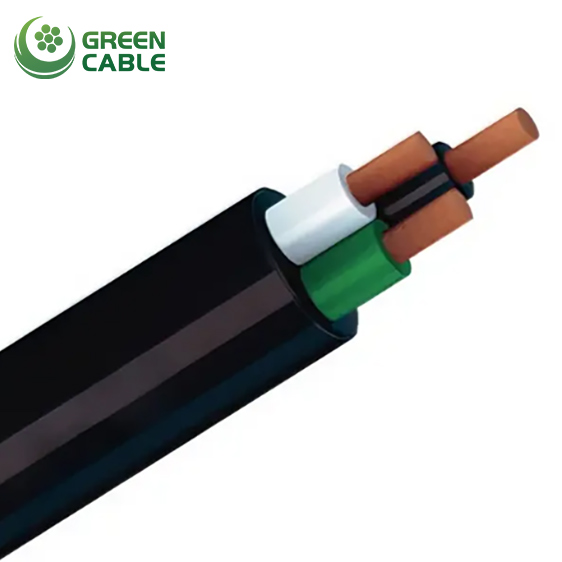

TSJ/TSJ-N Cable

TSJ conductor is an insulated multiconductor composed by bunch-stranded annealed copper flexible conductors, each single cord has a thermoplastic insulation of PVC (Polyvinyl Chloride) and its protected by a Nylon sheath, in addition, the whole multiconductor is protected by a thermoplastic insulation of PVC. Designed to operate at not more than 600V, the TSJ is manufactured in constructions duplex (two single conductors), triplex (three single conductors) and quadruplex (four single conductors), also in sizes from 20 AWG up to 6AWG.

Send Massage Get Price

Construction

Conductor:Class 5, annealed soft fine wires
Insulation:105°C PVC + Nylon
Outer sheath:PVC

Standards

NTC 5521 ASTM B172 ASTM B174 UL-62 UL-83

Core No. x Gauge	Nominal Cross Section Area	Nominal Cover Thickness		Approximate Total Diameter		Total Weight Approx.	Max. Conductor DC Resistance @ 20°C
AWG	mm2	in	mm	in	mm	KG/KM	Ω/km
Duplex
2x18	0.82	0.030	0.762	0.231	5.859	48.45	22.40
2x16	1.31	0.030	0.762	0.256	6.492	63.86	14.10
2x14	2.08	0.030	0.762	0.285	7.244	86.06	8.88
2x12	3.31	0.045	1.143	0.353	8.956	133.17	5.58
2x10	5.26	0.060	1.524	0.463	11.752	222.53	3.51
2x8	8.37	0.060	1.524	0.559	14.205	332.63	2.23
2x6	13.3	0.060	1.524	0.628	15.949	456.25	1.40
Triplex
3x18	0.82	0.030	0.762	0.244	6.192	58.42	22.40
3x16	1.31	0.030	0.762	0.271	6.874	78.49	14.10
3x14	2.08	0.030	0.762	0.303	7.684	107.8	8.88
3x12	3.31	0.045	1.143	0.373	9.469	166.68	5.58
3x10	5.26	0.060	1.524	0.489	12.420	276.82	3.51
3x8	8.37	0.060	1.524	0.593	15.063	417.18	2.23
3x6	13.3	0.060	1.524	0.667	16.942	582.54	1.40
Quadruplex
4x18	0.82	0.030	0.762	0.266	6.750	71.04	22.40
4x16	1.31	0.030	0.762	0.296	7.514	96.48	14.10
4x14	2.08	0.030	0.762	0.332	8.423	133.84	8.88
4x12	3.31	0.045	1.143	0.407	10.328	206.39	5.58
4x10	5.26	0.060	1.524	0.533	13.542	341.51	3.51
4x8	8.37	0.060	1.524	0.650	16.503	517.78	2.23
4x6	13.3	0.060	1.524	0.733	18.608	729.61	1.40
