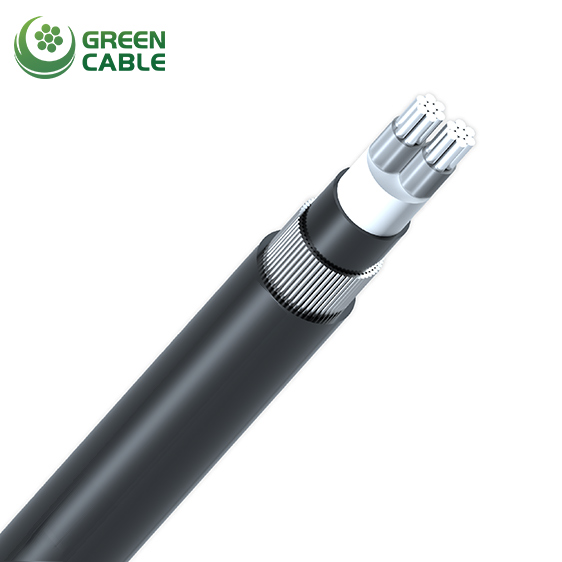

Cables may be used in power stations, industry and switchgear as well as for urban supply networks, where with low risk of mechanical damage. Suitable for Installation indoors, cable trunking, outdoors and buried in the ground and in duct.
Conductor : Copper or Aluminum Class 2 stranded conductors
Insulation: Cross-linked polyethylene XLPE
Armor: Steel wire
Over sheath: Polyvinyl chloride PVC
IEC 60228, IEC 60502-1
|
LV Power Cables - Copper Conductor IEC 60502-1 |
||
|
XLPE Insulated Cable |
YJV (N2XY) |
CU/XLPE/PVC |
|
YJY (N2X2Y) |
CU/XLPE/PE |
|
|
YJV22 (N2XBY) |
CU/XLPE/STA/PVC |
|
|
YJV23 (N2XB2Y) |
CU/XLPE/STA/PE |
|
|
YJV32 (N2XRY) |
CU/XLPE/SWA/PVC |
|
|
YJV33 (N2XR2Y) |
CU/XLPE/SWA/PE |
|
|
LV Power Cables - Aluminum Conductor IEC 60502-1 |
||
|
XLPE Insulated Cable |
YJLV (NA2XY) |
AL/XLPE/PVC |
|
YJLY (NA2X2Y) |
AL/XLPE/PE |
|
|
YJLV22 (NA2XBY) |
AL/XLPE/STA/PVC |
|
|
YJLV23 (NA2XB2Y) |
AL/XLPE/STA/PE |
|
|
YJLV32 (NA2XRY) |
AL/XLPE/SWA/PVC |
|
|
YJLV33 (NA2XR2Y) |
AL/XLPE/SWA/PE |
|
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Armored wire cable |
|||||||||||||||||||||||
|
PVC bedding thickness |
Armored wire Outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||||||
|
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
||
|
1.5 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
1.8 |
14.2 |
14.6 |
15.3 |
16.1 |
343 |
367 |
414 |
445 |
324 |
339 |
377 |
399 |
|
2.5 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
1.8 |
15.0 |
15.4 |
16.3 |
17.2 |
317 |
421 |
485 |
528 |
286 |
374 |
423 |
450 |
|
4 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
1.25 |
1.8 |
1.8 |
1.8 |
1.8 |
15.9 |
16.5 |
17.4 |
19.4 |
369 |
497 |
576 |
782 |
319 |
422 |
476 |
658 |
|
6 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
1.8 |
16.9 |
17.6 |
19.5 |
20.7 |
443 |
587 |
816 |
929 |
368 |
475 |
666 |
742 |
|
10 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
1.8 |
20.1 |
20.9 |
22.3 |
23.8 |
720 |
927 |
1098 |
1284 |
595 |
738 |
847 |
969 |
|
16 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
1.8 |
22.3 |
23.3 |
25.6 |
27.5 |
925 |
1217 |
1588 |
1831 |
723 |
915 |
1186 |
1328 |
|
25 |
0.9 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
1.8 |
25.8 |
27.0 |
29.0 |
31.3 |
1350 |
1746 |
2091 |
2455 |
1035 |
1274 |
1462 |
1669 |
|
35 |
0.9 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.9 |
1.9 |
28.2 |
29.6 |
32.1 |
34.7 |
1642 |
2161 |
2586 |
3096 |
1202 |
1500 |
1705 |
1995 |
|
50 |
1.0 |
1.0 |
1.0 |
1.0 |
1.2 |
1.6 |
1.6 |
1.6 |
2.0 |
1.8 |
1.9 |
2.0 |
2.1 |
31.0 |
32.8 |
35.7 |
40.1 |
2053 |
2685 |
3322 |
4332 |
1424 |
1741 |
2064 |
2759 |
|
70 |
1.1 |
1.0 |
1.2 |
1.2 |
1.2 |
1.6 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.2 |
2.3 |
28.2 |
32.9 |
37.4 |
43.6 |
2272 |
3484 |
4417 |
5448 |
1389 |
2160 |
2651 |
3242 |
|
95 |
1.1 |
1.2 |
1.2 |
1.2 |
1.4 |
2.0 |
2.0 |
2.0 |
2.5 |
2.1 |
2.2 |
2.3 |
2.5 |
32.4 |
36.5 |
41.6 |
49.5 |
3126 |
4374 |
5571 |
7465 |
1929 |
2577 |
3175 |
4471 |
|
120 |
1.2 |
1.2 |
1.2 |
1.4 |
1.4 |
2.0 |
2.0 |
2.5 |
2.5 |
2.2 |
2.3 |
2.5 |
2.6 |
35.4 |
39.8 |
46.4 |
53.9 |
3755 |
5291 |
7287 |
8986 |
2241 |
3021 |
4260 |
5203 |
|
150 |
1.4 |
1.2 |
1.4 |
1.4 |
1.4 |
2.0 |
2.5 |
2.5 |
2.5 |
2.3 |
2.5 |
2.7 |
2.8 |
38.2 |
45.4 |
50.6 |
59.5 |
4485 |
6912 |
8738 |
10850 |
2594 |
4075 |
4955 |
6121 |
|
185 |
1.6 |
1.4 |
1.4 |
1.4 |
1.6 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.6 |
2.8 |
3.0 |
46.0 |
49.6 |
55.4 |
68.2 |
5999 |
8243 |
10431 |
13220 |
3666 |
4743 |
5766 |
7388 |
|
240 |
1.7 |
1.4 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
2.5 |
3.15 |
2.7 |
2.8 |
3.0 |
3.3 |
50.8 |
57.0 |
62.9 |
74.2 |
7325 |
10375 |
13098 |
17103 |
4298 |
5835 |
7045 |
9537 |
|
300 |
1.8 |
1.6 |
1.6 |
1.6 |
1.8 |
2.5 |
2.5 |
2.5 |
3.15 |
2.9 |
3.0 |
3.2 |
3.5 |
56.0 |
59.7 |
69.0 |
79.7 |
8805 |
12311 |
15861 |
20414 |
5018 |
6631 |
8287 |
10947 |
|
400 |
2.0 |
|
1.6 |
1.8 |
|
|
2.5 |
3.15 |
|
|
3.3 |
3.6 |
|
|
66.8 |
79.9 |
|
|
15679 |
21307 |
|
|
8105 |
11209 |
|
|
500 |
2.2 |
|
1.8 |
|
|
|
3.15 |
|
|
|
3.5 |
|
|
|
85.5 |
|
|
|
20806 |
|
|
|
11339 |
|
|
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Armored wire cable |
|||||||||||||||||||
|
PVC bedding thickness |
Armored wire outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||
|
Phase line |
Null line |
Phase line |
Null line |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
|
2.5 |
1.5 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
16.1 |
16.8 |
17.0 |
468 |
504 |
533 |
— |
— |
— |
|
4 |
2.5 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
0.8 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
17.1 |
18.8 |
19.1 |
549 |
730 |
753 |
458 |
624 |
638 |
|
6 |
4.0 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
19.3 |
20.2 |
20.5 |
794 |
869 |
907 |
657 |
707 |
733 |
|
10 |
6.0 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
21.6 |
22.6 |
23.2 |
1023 |
1117 |
1201 |
797 |
853 |
912 |
|
16 |
10.0 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
1.25 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
24.3 |
26.3 |
26.9 |
1345 |
1640 |
1749 |
980 |
1212 |
1284 |
|
25 |
16.0 |
0.9 |
0.7 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
28.2 |
29.7 |
30.5 |
1946 |
2172 |
2322 |
1374 |
1499 |
1592 |
|
35 |
16.0 |
0.9 |
0.7 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.9 |
30.4 |
31.7 |
33.3 |
2317 |
2515 |
2835 |
1562 |
1665 |
1859 |
|
50 |
25.0 |
1.0 |
0.9 |
1.0 |
1.0 |
1.2 |
1.6 |
1.6 |
2.0 |
1.9 |
2.0 |
2.1 |
34.0 |
35.9 |
38.7 |
2994 |
3357 |
4021 |
1893 |
2098 |
2605 |
|
70 |
35.0 |
1.1 |
0.9 |
1.2 |
1.2 |
1.2 |
2.0 |
2.0 |
2.0 |
2.1 |
2.1 |
2.2 |
36.9 |
40.4 |
41.6 |
4044 |
4577 |
5014 |
2499 |
2813 |
3029 |
|
95 |
50.0 |
1.1 |
1.0 |
1.2 |
1.2 |
1.2 |
2.0 |
2.0 |
2.0 |
2.2 |
2.3 |
2.4 |
40.4 |
45.0 |
46.1 |
5095 |
5837 |
6362 |
2984 |
3411 |
3651 |
|
120 |
70.0 |
1.2 |
1.1 |
1.2 |
1.4 |
1.4 |
2.0 |
2.5 |
2.5 |
2.4 |
2.5 |
2.6 |
43.7 |
50.8 |
52.8 |
6193 |
7821 |
8453 |
3482 |
4668 |
4985 |
|
150 |
70.0 |
1.4 |
1.1 |
1.4 |
1.4 |
1.4 |
2.5 |
2.5 |
2.5 |
2.5 |
2.6 |
2.7 |
48.9 |
55.1 |
57.1 |
7839 |
8969 |
9893 |
4560 |
5249 |
5669 |
|
185 |
95.0 |
1.6 |
1.1 |
1.4 |
1.4 |
1.6 |
2.5 |
2.5 |
2.5 |
2.7 |
2.8 |
2.9 |
54.6 |
60.6 |
62.9 |
9506 |
10871 |
11997 |
5408 |
6174 |
6732 |
|
240 |
120.0 |
1.7 |
1.2 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
2.5 |
2.9 |
3.0 |
3.1 |
62.6 |
68.2 |
69.7 |
11941 |
13507 |
14820 |
6645 |
7454 |
8010 |
|
300 |
150.0 |
1.8 |
1.4 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
3.15 |
3.1 |
3.2 |
3.4 |
67.9 |
75.0 |
74.0 |
14363 |
16353 |
18430 |
7737 |
8781 |
9911 |
|
400 |
185.0 |
2.0 |
1.6 |
1.6 |
1.8 |
1.8 |
3.15 |
3.15 |
3.15 |
3.4 |
3.5 |
3.7 |
78.6 |
85.5 |
79.3 |
19145 |
21623 |
23153 |
10405 |
11716 |
11889 |
