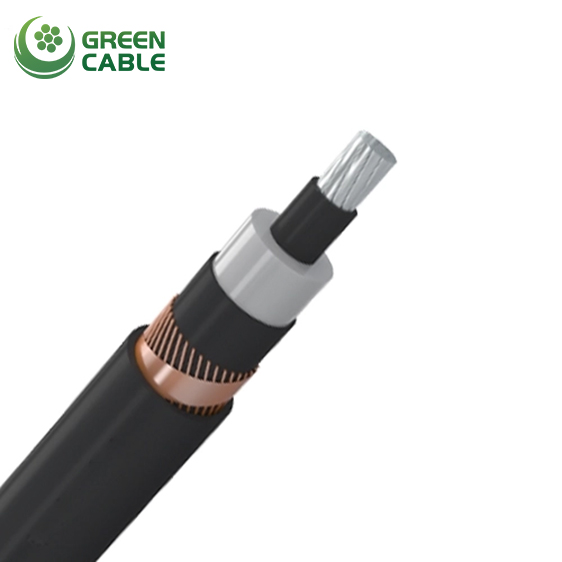

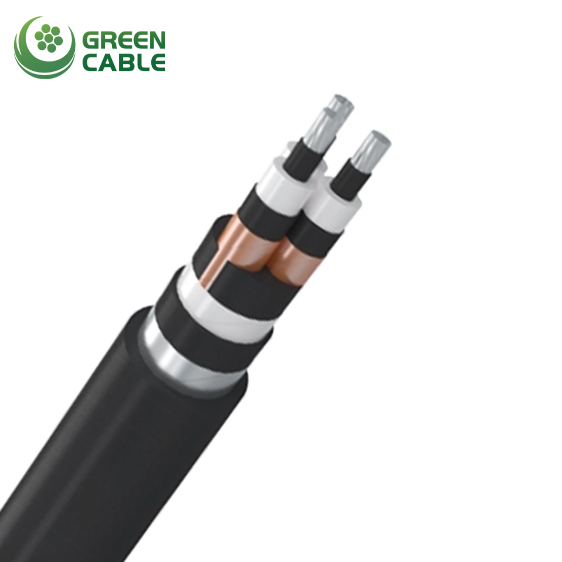

Medium voltage power cables are for the distribution power systems, with the voltages falling usually within the range of 1 kV to 36 kV. They are employed in large commercial buildings and industrial plants, and for the linking of substations with the local distribution networks.Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants. We can proudce many types of medium voltage cables.
Voltage: 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35KV
Conductor : Copper or Aluminum,Class 1 or Class 2,solid or stranded Circular conductors
Conductor screen: semi-conducting compound
Insulation: Cross-linked polyethylene XLPE
Insulation screen: semi-conducting compound
Metallic screen: Copper tape or/and Copper wire
Armored:Steel Wire or Steel Tape
Over sheath: Polyvinyl chloride PVC or PE
IEC 60228, IEC 60502-2
|
MV Power Cables - Copper Conductor IEC 60502-2 |
|||
|
XLPE Insulated Cable |
Single-core |
Three-core |
|
|
YJV (N2XSY) |
YJV (N2XSEY) |
CU/XLPE/CTS/PVC |
|
|
YJY (N2XS2Y) |
YJY (N2XSE2Y) |
CU/XLPE/CTS/PE |
|
|
YJSV (N2XSY) |
YJSV (N2XSEY) |
CU/XLPE/CWS&CTS/PVC |
|
|
YJSY (N2XS2Y) |
YJSY (N2XSE2Y) |
CU/XLPE/CWS&CTS/PE |
|
|
YJV62 (N2XSBY) |
YJV22 (N2XSEBY) |
CU/XLPE/CTS/STA/PVC |
|
|
YJV63 (N2XSB2Y) |
YJV23 (N2XSEB2Y) |
CU/XLPE/CTS/STA/PE |
|
|
YJV72 (N2XSRY) |
YJV32 (N2XSERY) |
CU/XLPE/CTS/SWA/PVC |
|
|
YJV73 (N2XSR2Y) |
YJV33 (N2XSER2Y) |
CU/XLPE/CTS/SWA/PE |
|
|
MV Power Cables - Aluminum Conductor IEC 60502-2 |
|||
|
XLPE Insulated Cable |
Single-core |
Three-core |
|
|
YJLV (NA2XSY) |
YJLV (NA2XSEY) |
AL/XLPE/CTS/PVC |
|
|
YJLY (NA2XS2Y) |
YJLY (NA2XSE2Y) |
AL/XLPE/CTS/PE |
|
|
YJLSV (NA2XSY) |
YJLSV (NA2XSEY) |
AL/XLPE/CWS&CTS/PVC |
|
|
YJLSY (NA2XS2Y) |
YJLSY (NA2XSE2Y) |
AL/XLPE/CWS&CTS/PE |
|
|
YJLV62 (NA2XSBY) |
YJLV22 (NA2XSEBY) |
AL/XLPE/CTS/STA/PVC |
|
|
YJLV63 (NA2XSB2Y) |
YJLV23 (NA2XSEB2Y) |
AL/XLPE/CTS/STA/PE |
|
|
YJLV72 (NA2XSRY) |
YJLV32 (NA2XSERY) |
AL/XLPE/CTS/SWA/PVC |
|
|
YJLV73 (NA2XSR2Y) |
YJLV33 (NA2XSER2Y) |
AL/XLPE/CTS/SWA/PE |
|
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.12 |
1.5 |
17.2 |
510 |
354 |
|
35 |
Compact round |
7.2 |
2.5 |
0.12 |
1.6 |
18.6 |
637 |
418 |
|
50 |
Compact round |
8.4 |
2.5 |
0.12 |
1.6 |
19.8 |
800 |
488 |
|
70 |
Compact round |
10.0 |
2.5 |
0.12 |
1.7 |
21.6 |
1029 |
591 |
|
95 |
Compact round |
11.7 |
2.5 |
0.12 |
1.7 |
23.3 |
1296 |
701 |
|
120 |
Compact round |
13.1 |
2.5 |
0.12 |
1.8 |
24.9 |
1566 |
815 |
|
150 |
Compact round |
14.6 |
2.5 |
0.12 |
1.8 |
26.4 |
1873 |
934 |
|
185 |
Compact round |
16.3 |
2.5 |
0.12 |
1.9 |
28.3 |
2244 |
1085 |
|
240 |
Compact round |
18.5 |
2.6 |
0.12 |
1.9 |
30.7 |
2805 |
1302 |
|
300 |
Compact round |
20.7 |
2.8 |
0.12 |
2.0 |
33.7 |
3456 |
1576 |
|
400 |
Compact round |
23.8 |
3.0 |
0.12 |
2.2 |
37.4 |
4501 |
1994 |
|
500 |
Compact round |
26.6 |
3.2 |
0.12 |
2.3 |
41.4 |
5546 |
2412 |
|
630 |
Compact round |
30.1 |
3.2 |
0.12 |
2.4 |
45.1 |
6853 |
2905 |
|
800 |
Compact round |
35.0 |
3.2 |
0.12 |
2.5 |
50.4 |
8576 |
3562 |
|
1000 |
Milliken conductor |
39.5 |
3.2 |
0.12 |
2.6 |
55.3 |
10592 |
4306 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.12 |
2.1 |
34.7 |
1521 |
1049 |
|
35 |
Compact round |
7.2 |
2.5 |
0.12 |
2.2 |
37.5 |
1891 |
1230 |
|
50 |
Compact round |
8.4 |
2.5 |
0.12 |
2.3 |
40.2 |
2402 |
1458 |
|
70 |
Compact round |
10.0 |
2.5 |
0.12 |
2.4 |
43.9 |
3082 |
1760 |
|
95 |
Compact round |
11.7 |
2.5 |
0.12 |
2.5 |
47.8 |
3914 |
2121 |
|
120 |
Compact round |
13.1 |
2.5 |
0.12 |
2.6 |
51.1 |
4722 |
2456 |
|
150 |
Compact round |
14.6 |
2.5 |
0.12 |
2.7 |
54.5 |
5676 |
2844 |
|
185 |
Compact round |
16.3 |
2.5 |
0.12 |
2.8 |
58.4 |
6786 |
3293 |
|
240 |
Compact round |
18.5 |
2.6 |
0.12 |
3.0 |
63.9 |
8535 |
4004 |
|
300 |
Compact round |
20.7 |
2.8 |
0.12 |
3.2 |
70.3 |
10512 |
4849 |
|
400 |
Compact round |
23.8 |
3.0 |
0.12 |
3.5 |
78.4 |
13664 |
6113 |
|
500 |
Compact round |
26.6 |
3.2 |
0.12 |
3.7 |
87.0 |
16918 |
7479 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.1 |
1.2 |
0.5 |
2.2 |
39.3 |
2474 |
2002 |
|
35 |
Compact round |
7.2 |
2.5 |
0.1 |
1.3 |
0.5 |
2.3 |
42.3 |
2947 |
2286 |
|
50 |
Compact round |
8.4 |
2.5 |
0.1 |
1.3 |
0.5 |
2.4 |
45.1 |
3537 |
2593 |
|
70 |
Compact round |
10.0 |
2.5 |
0.1 |
1.4 |
0.5 |
2.5 |
48.9 |
4351 |
3030 |
|
95 |
Compact round |
11.7 |
2.5 |
0.1 |
1.4 |
0.5 |
2.6 |
52.8 |
5297 |
3504 |
|
120 |
Compact round |
13.1 |
2.5 |
0.1 |
1.5 |
0.5 |
2.8 |
56.4 |
6277 |
4012 |
|
150 |
Compact round |
14.6 |
2.5 |
0.1 |
1.6 |
0.5 |
2.9 |
60.0 |
7373 |
4541 |
|
185 |
Compact round |
16.3 |
2.5 |
0.1 |
1.6 |
0.5 |
3.0 |
63.9 |
8665 |
5172 |
|
240 |
Compact round |
18.5 |
2.6 |
0.1 |
1.7 |
0.5 |
3.2 |
69.7 |
10618 |
6087 |
|
300 |
Compact round |
20.7 |
2.8 |
0.1 |
1.8 |
0.5 |
3.4 |
76.3 |
12836 |
7173 |
|
400 |
Compact round |
23.8 |
3.0 |
0.1 |
2.0 |
0.8 |
3.7 |
86.1 |
17195 |
9644 |
|
500 |
Compact round |
26.6 |
3.2 |
0.1 |
2.1 |
0.8 |
3.9 |
94.8 |
20887 |
11448 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.1 |
1.2 |
2.0 |
2.3 |
42.1 |
3317 |
2845 |
|
35 |
Compact round |
7.2 |
2.5 |
0.1 |
1.3 |
2.5 |
2.5 |
46.7 |
4312 |
3651 |
|
50 |
Compact round |
8.4 |
2.5 |
0.1 |
1.3 |
2.5 |
2.5 |
49.3 |
4972 |
4028 |
|
70 |
Compact round |
10.0 |
2.5 |
0.1 |
1.4 |
2.5 |
2.7 |
53.3 |
5968 |
4646 |
|
95 |
Compact round |
11.7 |
2.5 |
0.1 |
1.4 |
2.5 |
2.8 |
57.2 |
7033 |
5239 |
|
120 |
Compact round |
13.1 |
2.5 |
0.1 |
1.5 |
2.5 |
2.9 |
60.6 |
8072 |
5807 |
|
150 |
Compact round |
14.6 |
2.5 |
0.1 |
1.6 |
2.5 |
3.0 |
64.2 |
9288 |
6456 |
|
185 |
Compact round |
16.3 |
2.5 |
0.1 |
1.6 |
2.5 |
3.1 |
68.1 |
10737 |
7245 |
|
240 |
Compact round |
18.5 |
2.6 |
0.1 |
1.7 |
2.5 |
3.3 |
73.9 |
12869 |
8339 |
|
300 |
Compact round |
20.7 |
2.8 |
0.1 |
1.8 |
3.15 |
3.5 |
81.8 |
16183 |
10520 |
|
400 |
Compact round |
23.8 |
3.0 |
0.1 |
2.0 |
3.15 |
3.8 |
90.4 |
20070 |
12519 |
|
500 |
Compact round |
26.6 |
3.2 |
0.1 |
2.1 |
3.15 |
4.1 |
99.3 |
24131 |
14692 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.12 |
1.6 |
19.4 |
580 |
423 |
|
35 |
Compact round |
7.2 |
3.4 |
0.12 |
1.6 |
20.6 |
702 |
483 |
|
50 |
Compact round |
8.4 |
3.4 |
0.12 |
1.7 |
22.0 |
878 |
566 |
|
70 |
Compact round |
10.0 |
3.4 |
0.12 |
1.7 |
23.6 |
1103 |
665 |
|
95 |
Compact round |
11.7 |
3.4 |
0.12 |
1.8 |
25.5 |
1386 |
791 |
|
120 |
Compact round |
13.1 |
3.4 |
0.12 |
1.8 |
26.9 |
1649 |
898 |
|
150 |
Compact round |
14.6 |
3.4 |
0.12 |
1.9 |
28.6 |
1974 |
1035 |
|
185 |
Compact round |
16.3 |
3.4 |
0.12 |
1.9 |
30.3 |
2337 |
1178 |
|
240 |
Compact round |
18.5 |
3.4 |
0.12 |
2.0 |
32.7 |
2908 |
1406 |
|
300 |
Compact round |
20.7 |
3.4 |
0.12 |
2.1 |
35.3 |
3544 |
1664 |
|
400 |
Compact round |
23.8 |
3.4 |
0.12 |
2.2 |
38.6 |
4554 |
2047 |
|
500 |
Compact round |
26.6 |
3.4 |
0.12 |
2.3 |
42.2 |
5574 |
2440 |
|
630 |
Compact round |
30.1 |
3.4 |
0.12 |
2.4 |
45.9 |
6884 |
2936 |
|
800 |
Compact round |
35.0 |
3.4 |
0.12 |
2.5 |
51.2 |
8611 |
3597 |
|
1000 |
Milliken conductor |
39.5 |
3.4 |
0.12 |
2.7 |
56.3 |
10655 |
4369 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.12 |
2.2 |
38.9 |
1728 |
1256 |
|
35 |
Compact round |
7.2 |
3.4 |
0.12 |
2.3 |
41.6 |
2111 |
1451 |
|
50 |
Compact round |
8.4 |
3.4 |
0.12 |
2.4 |
44.4 |
2636 |
1692 |
|
70 |
Compact round |
10.0 |
3.4 |
0.12 |
2.5 |
48.1 |
3336 |
2015 |
|
95 |
Compact round |
11.7 |
3.4 |
0.12 |
2.7 |
52.0 |
4185 |
2392 |
|
120 |
Compact round |
13.1 |
3.4 |
0.12 |
2.8 |
55.2 |
5009 |
2743 |
|
150 |
Compact round |
14.6 |
3.4 |
0.12 |
2.9 |
58.7 |
5979 |
3148 |
|
185 |
Compact round |
16.3 |
3.4 |
0.12 |
3.0 |
62.5 |
7109 |
3616 |
|
240 |
Compact round |
18.5 |
3.4 |
0.12 |
3.1 |
67.6 |
8845 |
4314 |
|
300 |
Compact round |
20.7 |
3.4 |
0.12 |
3.3 |
73.1 |
10764 |
5101 |
|
400 |
Compact round |
23.8 |
3.4 |
0.12 |
3.5 |
80.2 |
13848 |
6297 |
|
500 |
Compact round |
26.6 |
3.4 |
0.12 |
3.7 |
87.9 |
17019 |
7580 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.3 |
0.5 |
2.4 |
43.8 |
2805 |
2333 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.3 |
0.5 |
2.4 |
46.4 |
3251 |
2590 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.4 |
0.5 |
2.6 |
49.6 |
3902 |
2958 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.5 |
0.5 |
2.7 |
53.4 |
4739 |
3417 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.5 |
0.5 |
2.8 |
57.3 |
5706 |
3913 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.6 |
0.5 |
2.9 |
60.7 |
6681 |
4415 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.6 |
0.5 |
3.0 |
64.1 |
7764 |
4932 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.7 |
0.5 |
3.1 |
68.2 |
9108 |
5615 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.8 |
0.5 |
3.3 |
73.5 |
11046 |
6515 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.9 |
0.5 |
3.5 |
79.3 |
13198 |
7534 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
2.0 |
0.8 |
3.7 |
87.8 |
17420 |
9869 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.1 |
0.8 |
3.9 |
94.8 |
20958 |
11520 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.3 |
2.5 |
2.5 |
48.0 |
4175 |
3703 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.3 |
2.5 |
2.6 |
50.8 |
4733 |
4072 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.4 |
2.5 |
2.7 |
53.8 |
5491 |
4547 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.5 |
2.5 |
2.8 |
57.6 |
6446 |
5124 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.5 |
2.5 |
2.9 |
61.5 |
7530 |
5737 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.6 |
2.5 |
3.0 |
64.9 |
8628 |
6363 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.6 |
2.5 |
3.1 |
68.3 |
9794 |
6963 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.7 |
2.5 |
3.3 |
72.6 |
11326 |
7834 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.8 |
3.15 |
3.5 |
79.2 |
14268 |
9737 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.9 |
3.15 |
3.6 |
84.8 |
16641 |
10978 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
2.0 |
3.15 |
3.9 |
92.3 |
20362 |
12811 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.1 |
3.15 |
4.1 |
99.3 |
24203 |
14764 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.12 |
1.7 |
21.8 |
672 |
515 |
|
35 |
Compact round |
7.2 |
4.5 |
0.12 |
1.7 |
23.0 |
798 |
580 |
|
50 |
Compact round |
8.4 |
4.5 |
0.12 |
1.7 |
24.2 |
970 |
657 |
|
70 |
Compact round |
10.0 |
4.5 |
0.12 |
1.8 |
26.0 |
1212 |
773 |
|
95 |
Compact round |
11.7 |
4.5 |
0.12 |
1.9 |
27.9 |
1502 |
907 |
|
120 |
Compact round |
13.1 |
4.5 |
0.12 |
1.9 |
29.3 |
1771 |
1020 |
|
150 |
Compact round |
14.6 |
4.5 |
0.12 |
2.0 |
31.0 |
2103 |
1164 |
|
185 |
Compact round |
16.3 |
4.5 |
0.12 |
2.0 |
32.7 |
2472 |
1314 |
|
240 |
Compact round |
18.5 |
4.5 |
0.12 |
2.1 |
35.1 |
3054 |
1551 |
|
300 |
Compact round |
20.7 |
4.5 |
0.12 |
2.2 |
37.7 |
3700 |
1820 |
|
400 |
Compact round |
23.8 |
4.5 |
0.12 |
2.3 |
41.0 |
4723 |
2216 |
|
500 |
Compact round |
26.6 |
4.5 |
0.12 |
2.4 |
44.6 |
5752 |
2618 |
|
630 |
Compact round |
30.1 |
4.5 |
0.12 |
2.5 |
48.3 |
7082 |
3134 |
|
800 |
Compact round |
35.0 |
4.5 |
0.12 |
2.6 |
53.6 |
8830 |
3816 |
|
1000 |
Milliken conductor |
39.5 |
4.5 |
0.12 |
2.7 |
58.5 |
10868 |
4582 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.12 |
2.4 |
43.9 |
2008 |
1536 |
|
35 |
Compact round |
7.2 |
4.5 |
0.12 |
2.5 |
46.7 |
2411 |
1750 |
|
50 |
Compact round |
8.4 |
4.5 |
0.12 |
2.6 |
49.5 |
2953 |
2009 |
|
70 |
Compact round |
10.0 |
4.5 |
0.12 |
2.7 |
53.2 |
3672 |
2351 |
|
95 |
Compact round |
11.7 |
4.5 |
0.12 |
2.8 |
57.1 |
4544 |
2751 |
|
120 |
Compact round |
13.1 |
4.5 |
0.12 |
2.9 |
60.3 |
5387 |
3122 |
|
150 |
Compact round |
14.6 |
4.5 |
0.12 |
3.0 |
63.7 |
6378 |
3546 |
|
185 |
Compact round |
16.3 |
4.5 |
0.12 |
3.1 |
67.6 |
7531 |
4038 |
|
240 |
Compact round |
18.5 |
4.5 |
0.12 |
3.3 |
72.7 |
9297 |
4767 |
|
300 |
Compact round |
20.7 |
4.5 |
0.12 |
3.5 |
78.2 |
11249 |
5586 |
|
400 |
Compact round |
23.8 |
4.5 |
0.12 |
3.7 |
85.3 |
14376 |
6825 |
|
500 |
Compact round |
26.6 |
4.5 |
0.12 |
3.9 |
93.0 |
17592 |
8153 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.1 |
1.4 |
0.5 |
2.5 |
48.9 |
3227 |
2755 |
|
35 |
Compact round |
7.2 |
4.5 |
0.1 |
1.4 |
0.5 |
2.6 |
51.7 |
3711 |
3050 |
|
50 |
Compact round |
8.4 |
4.5 |
0.1 |
1.5 |
0.5 |
2.7 |
54.7 |
4372 |
3428 |
|
70 |
Compact round |
10.0 |
4.5 |
0.1 |
1.5 |
0.5 |
2.8 |
58.4 |
5208 |
3886 |
|
95 |
Compact round |
11.7 |
4.5 |
0.1 |
1.6 |
0.5 |
3.0 |
62.6 |
6271 |
4477 |
|
120 |
Compact round |
13.1 |
4.5 |
0.1 |
1.7 |
0.5 |
3.1 |
66.0 |
7254 |
4989 |
|
150 |
Compact round |
14.6 |
4.5 |
0.1 |
1.7 |
0.5 |
3.2 |
69.5 |
8420 |
5588 |
|
185 |
Compact round |
16.3 |
4.5 |
0.1 |
1.8 |
0.5 |
3.3 |
73.5 |
9731 |
6239 |
|
240 |
Compact round |
18.5 |
4.5 |
0.1 |
1.9 |
0.5 |
3.5 |
78.9 |
11715 |
7184 |
|
300 |
Compact round |
20.7 |
4.5 |
0.1 |
2.0 |
0.8 |
3.7 |
85.8 |
14774 |
9111 |
|
400 |
Compact round |
23.8 |
4.5 |
0.1 |
2.1 |
0.8 |
3.9 |
93.1 |
18350 |
10798 |
|
500 |
Compact round |
26.6 |
4.5 |
0.1 |
2.2 |
0.8 |
4.1 |
101.0 |
21990 |
12551 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.1 |
1.4 |
2.5 |
2.7 |
53.3 |
4803 |
4331 |
|
35 |
Compact round |
7.2 |
4.5 |
0.1 |
1.4 |
2.5 |
2.8 |
56.1 |
5379 |
4719 |
|
50 |
Compact round |
8.4 |
4.5 |
0.1 |
1.5 |
2.5 |
2.9 |
59.1 |
6091 |
5147 |
|
70 |
Compact round |
10.0 |
4.5 |
0.1 |
1.5 |
2.5 |
3.0 |
62.8 |
7088 |
5766 |
|
95 |
Compact round |
11.7 |
4.5 |
0.1 |
1.6 |
2.5 |
3.1 |
66.8 |
8239 |
6446 |
|
120 |
Compact round |
13.1 |
4.5 |
0.1 |
1.7 |
2.5 |
3.2 |
70.2 |
9346 |
7080 |
|
150 |
Compact round |
14.6 |
4.5 |
0.1 |
1.7 |
3.15 |
3.4 |
75.2 |
11431 |
8599 |
|
185 |
Compact round |
16.3 |
4.5 |
0.1 |
1.8 |
3.15 |
3.5 |
79.2 |
12953 |
9461 |
|
240 |
Compact round |
18.5 |
4.5 |
0.1 |
1.9 |
3.15 |
3.7 |
84.6 |
15139 |
10608 |
|
300 |
Compact round |
20.7 |
4.5 |
0.1 |
2.0 |
3.15 |
3.8 |
90.1 |
17591 |
11928 |
|
400 |
Compact round |
23.8 |
4.5 |
0.1 |
2.1 |
3.15 |
4.1 |
97.6 |
21504 |
13953 |
|
500 |
Compact round |
26.6 |
4.5 |
0.1 |
2.2 |
3.15 |
4.3 |
105.5 |
25364 |
15925 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.12 |
1.8 |
25.2 |
896 |
677 |
|
50 |
Compact round |
8.4 |
5.5 |
0.12 |
1.8 |
26.4 |
1071 |
759 |
|
70 |
Compact round |
10.0 |
5.5 |
0.12 |
1.9 |
28.2 |
1320 |
882 |
|
95 |
Compact round |
11.7 |
5.5 |
0.12 |
1.9 |
29.9 |
1604 |
1009 |
|
120 |
Compact round |
13.1 |
5.5 |
0.12 |
2.0 |
31.5 |
1892 |
1141 |
|
150 |
Compact round |
14.6 |
5.5 |
0.12 |
2.0 |
33.0 |
2215 |
1275 |
|
185 |
Compact round |
16.3 |
5.5 |
0.12 |
2.1 |
34.9 |
2605 |
1447 |
|
240 |
Compact round |
18.5 |
5.5 |
0.12 |
2.2 |
37.3 |
3196 |
1693 |
|
300 |
Compact round |
20.7 |
5.5 |
0.12 |
2.2 |
39.7 |
3833 |
1953 |
|
400 |
Compact round |
23.8 |
5.5 |
0.12 |
2.3 |
43.0 |
4867 |
2360 |
|
500 |
Compact round |
26.6 |
5.5 |
0.12 |
2.4 |
46.6 |
5902 |
2769 |
|
630 |
Compact round |
30.1 |
5.5 |
0.12 |
2.5 |
50.3 |
7250 |
3302 |
|
800 |
Compact round |
35.0 |
5.5 |
0.12 |
2.7 |
55.8 |
9040 |
4026 |
|
1000 |
Milliken conductor |
39.5 |
5.5 |
0.12 |
2.8 |
60.7 |
11096 |
4810 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.12 |
2.6 |
51.3 |
2708 |
2047 |
|
50 |
Compact round |
8.4 |
5.5 |
0.12 |
2.7 |
54.1 |
3264 |
2320 |
|
70 |
Compact round |
10.0 |
5.5 |
0.12 |
2.8 |
57.8 |
4004 |
2682 |
|
95 |
Compact round |
11.7 |
5.5 |
0.12 |
3.0 |
61.7 |
4897 |
3103 |
|
120 |
Compact round |
13.1 |
5.5 |
0.12 |
3.1 |
64.9 |
5757 |
3492 |
|
150 |
Compact round |
14.6 |
5.5 |
0.12 |
3.2 |
68.3 |
6767 |
3935 |
|
185 |
Compact round |
16.3 |
5.5 |
0.12 |
3.3 |
72.2 |
7941 |
4448 |
|
240 |
Compact round |
18.5 |
5.5 |
0.12 |
3.5 |
77.3 |
9735 |
5204 |
|
300 |
Compact round |
20.7 |
5.5 |
0.12 |
3.6 |
82.8 |
11716 |
6053 |
|
400 |
Compact round |
23.8 |
5.5 |
0.12 |
3.8 |
89.9 |
14882 |
7331 |
|
500 |
Compact round |
26.6 |
5.5 |
0.12 |
4.0 |
97.6 |
18140 |
8701 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.1 |
1.5 |
0.5 |
2.8 |
56.6 |
4182 |
3521 |
|
50 |
Compact round |
8.4 |
5.5 |
0.1 |
1.6 |
0.5 |
2.9 |
59.6 |
4866 |
3922 |
|
70 |
Compact round |
10.0 |
5.5 |
0.1 |
1.6 |
0.5 |
3.0 |
63.3 |
5738 |
4417 |
|
95 |
Compact round |
11.7 |
5.5 |
0.1 |
1.7 |
0.5 |
3.1 |
67.3 |
6783 |
4990 |
|
120 |
Compact round |
13.1 |
5.5 |
0.1 |
1.8 |
0.5 |
3.2 |
70.7 |
7847 |
5582 |
|
150 |
Compact round |
14.6 |
5.5 |
0.1 |
1.8 |
0.5 |
3.3 |
74.2 |
8972 |
6141 |
|
185 |
Compact round |
16.3 |
5.5 |
0.1 |
1.9 |
0.5 |
3.5 |
78.4 |
10352 |
6859 |
|
240 |
Compact round |
18.5 |
5.5 |
0.1 |
2.0 |
0.8 |
3.7 |
85.0 |
13229 |
8698 |
|
300 |
Compact round |
20.7 |
5.5 |
0.1 |
2.1 |
0.8 |
3.8 |
90.5 |
15523 |
9860 |
|
400 |
Compact round |
23.8 |
5.5 |
0.1 |
2.2 |
0.8 |
4.1 |
98.0 |
19110 |
11559 |
|
500 |
Compact round |
26.6 |
5.5 |
0.1 |
2.3 |
0.8 |
4.3 |
105.9 |
22909 |
13470 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.1 |
1.5 |
2.5 |
2.9 |
60.8 |
5934 |
5273 |
|
50 |
Compact round |
8.4 |
5.5 |
0.1 |
1.6 |
2.5 |
3.0 |
63.8 |
6706 |
5763 |
|
70 |
Compact round |
10.0 |
5.5 |
0.1 |
1.6 |
2.5 |
3.1 |
67.5 |
7699 |
6378 |
|
95 |
Compact round |
11.7 |
5.5 |
0.1 |
1.7 |
2.5 |
3.3 |
71.7 |
8932 |
7139 |
|
120 |
Compact round |
13.1 |
5.5 |
0.1 |
1.8 |
3.15 |
3.4 |
76.4 |
10907 |
8641 |
|
150 |
Compact round |
14.6 |
5.5 |
0.1 |
1.8 |
3.15 |
3.5 |
79.9 |
12187 |
9355 |
|
185 |
Compact round |
16.3 |
5.5 |
0.1 |
1.9 |
3.15 |
3.6 |
83.9 |
13742 |
10250 |
|
240 |
Compact round |
18.5 |
5.5 |
0.1 |
2.0 |
3.15 |
3.8 |
89.3 |
16001 |
11471 |
|
300 |
Compact round |
20.7 |
5.5 |
0.1 |
2.1 |
3.15 |
4.0 |
95.0 |
18538 |
12875 |
|
400 |
Compact round |
23.8 |
5.5 |
0.1 |
2.2 |
3.15 |
4.2 |
102.3 |
22314 |
14762 |
|
500 |
Compact round |
26.6 |
5.5 |
0.1 |
2.3 |
3.15 |
4.4 |
110.2 |
26392 |
16953 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.12 |
2.0 |
31.8 |
1354 |
1042 |
|
70 |
Compact round |
10.0 |
8.0 |
0.12 |
2.0 |
33.4 |
1604 |
1166 |
|
95 |
Compact round |
11.7 |
8.0 |
0.12 |
2.1 |
35.3 |
1918 |
1323 |
|
120 |
Compact round |
13.1 |
8.0 |
0.12 |
2.1 |
36.7 |
2204 |
1453 |
|
150 |
Compact round |
14.6 |
8.0 |
0.12 |
2.2 |
38.4 |
2557 |
1617 |
|
185 |
Compact round |
16.3 |
8.0 |
0.12 |
2.2 |
40.1 |
2946 |
1788 |
|
240 |
Compact round |
18.5 |
8.0 |
0.12 |
2.3 |
42.5 |
3557 |
2055 |
|
300 |
Compact round |
20.7 |
8.0 |
0.12 |
2.4 |
45.1 |
4236 |
2355 |
|
400 |
Compact round |
23.8 |
8.0 |
0.12 |
2.5 |
48.4 |
5299 |
2792 |
|
500 |
Compact round |
26.6 |
8.0 |
0.12 |
2.6 |
52.0 |
6354 |
3220 |
|
630 |
Compact round |
30.1 |
8.0 |
0.12 |
2.7 |
55.7 |
7748 |
3799 |
|
800 |
Compact round |
35.0 |
8.0 |
0.12 |
2.8 |
61.0 |
9560 |
4546 |
|
1000 |
Milliken conductor |
39.5 |
8.0 |
0.12 |
3.0 |
66.1 |
11687 |
5401 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.12 |
3.1 |
65.6 |
4154 |
3210 |
|
70 |
Compact round |
10.0 |
8.0 |
0.12 |
3.2 |
69.3 |
4942 |
3621 |
|
95 |
Compact round |
11.7 |
8.0 |
0.12 |
3.3 |
73.2 |
5889 |
4095 |
|
120 |
Compact round |
13.1 |
8.0 |
0.12 |
3.5 |
76.4 |
6793 |
4527 |
|
150 |
Compact round |
14.6 |
8.0 |
0.12 |
3.6 |
79.9 |
7849 |
5018 |
|
185 |
Compact round |
16.3 |
8.0 |
0.12 |
3.7 |
83.8 |
9075 |
5583 |
|
240 |
Compact round |
18.5 |
8.0 |
0.12 |
3.8 |
88.8 |
10939 |
6408 |
|
300 |
Compact round |
20.7 |
8.0 |
0.12 |
4.0 |
94.3 |
12994 |
7330 |
|
400 |
Compact round |
23.8 |
8.0 |
0.12 |
4.2 |
101.4 |
16257 |
8706 |
|
500 |
Compact round |
26.6 |
8.0 |
0.12 |
4.4 |
109.2 |
19619 |
10180 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.1 |
1.8 |
0.5 |
3.3 |
71.6 |
6279 |
5335 |
|
70 |
Compact round |
10.0 |
8.0 |
0.1 |
1.8 |
0.5 |
3.4 |
75.2 |
7189 |
5868 |
|
95 |
Compact round |
11.7 |
8.0 |
0.1 |
1.9 |
0.5 |
3.5 |
79.3 |
8305 |
6511 |
|
120 |
Compact round |
13.1 |
8.0 |
0.1 |
2.0 |
0.8 |
3.7 |
84.1 |
10257 |
7992 |
|
150 |
Compact round |
14.6 |
8.0 |
0.1 |
2.0 |
0.8 |
3.8 |
87.5 |
11435 |
8603 |
|
185 |
Compact round |
16.3 |
8.0 |
0.1 |
2.1 |
0.8 |
3.9 |
91.6 |
12933 |
9441 |
|
240 |
Compact round |
18.5 |
8.0 |
0.1 |
2.2 |
0.8 |
4.1 |
96.9 |
15043 |
10512 |
|
300 |
Compact round |
20.7 |
8.0 |
0.1 |
2.3 |
0.8 |
4.2 |
102.5 |
17412 |
11749 |
|
400 |
Compact round |
23.8 |
8.0 |
0.1 |
2.4 |
0.8 |
4.5 |
110.0 |
21229 |
13678 |
|
500 |
Compact round |
26.6 |
8.0 |
0.1 |
2.5 |
0.8 |
4.7 |
117.9 |
25145 |
15706 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.1 |
1.8 |
3.15 |
3.5 |
77.3 |
9333 |
8390 |
|
70 |
Compact round |
10.0 |
8.0 |
0.1 |
1.8 |
3.15 |
3.6 |
80.9 |
10396 |
9075 |
|
95 |
Compact round |
11.7 |
8.0 |
0.1 |
1.9 |
3.15 |
3.7 |
85.0 |
11723 |
9930 |
|
120 |
Compact round |
13.1 |
8.0 |
0.1 |
2.0 |
3.15 |
3.8 |
88.4 |
12986 |
10720 |
|
150 |
Compact round |
14.6 |
8.0 |
0.1 |
2.0 |
3.15 |
3.9 |
91.8 |
14220 |
11388 |
|
185 |
Compact round |
16.3 |
8.0 |
0.1 |
2.1 |
3.15 |
4.0 |
95.9 |
15887 |
12395 |
|
240 |
Compact round |
18.5 |
8.0 |
0.1 |
2.2 |
3.15 |
4.2 |
101.2 |
18144 |
13613 |
|
300 |
Compact round |
20.7 |
8.0 |
0.1 |
2.3 |
3.15 |
4.4 |
107.0 |
20761 |
15097 |
|
400 |
Compact round |
23.8 |
8.0 |
0.1 |
2.4 |
3.15 |
4.6 |
114.3 |
24824 |
17273 |
|
500 |
Compact round |
26.6 |
8.0 |
0.1 |
2.5 |
3.15 |
4.8 |
122.2 |
29019 |
19580 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.12 |
2.1 |
34.8 |
1533 |
1221 |
|
70 |
Compact round |
10.0 |
9.3 |
0.12 |
2.1 |
36.4 |
1791 |
1353 |
|
95 |
Compact round |
11.7 |
9.3 |
0.12 |
2.2 |
38.3 |
2115 |
1520 |
|
120 |
Compact round |
13.1 |
9.3 |
0.12 |
2.2 |
39.7 |
2408 |
1656 |
|
150 |
Compact round |
14.6 |
9.3 |
0.12 |
2.3 |
41.4 |
2769 |
1830 |
|
185 |
Compact round |
16.3 |
9.3 |
0.12 |
2.3 |
43.1 |
3167 |
2009 |
|
240 |
Compact round |
18.5 |
9.3 |
0.12 |
2.4 |
45.5 |
3790 |
2287 |
|
300 |
Compact round |
20.7 |
9.3 |
0.12 |
2.5 |
48.1 |
4481 |
2601 |
|
400 |
Compact round |
23.8 |
9.3 |
0.12 |
2.6 |
51.4 |
5561 |
3054 |
|
500 |
Compact round |
26.6 |
9.3 |
0.12 |
2.7 |
57.1 |
6894 |
3760 |
|
630 |
Compact round |
30.1 |
9.3 |
0.12 |
2.8 |
60.8 |
8263 |
4314 |
|
800 |
Compact round |
35.0 |
9.3 |
0.12 |
3.0 |
66.3 |
10257 |
5243 |
|
1000 |
Milliken conductor |
39.5 |
9.3 |
0.12 |
3.1 |
71.2 |
12369 |
6083 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.12 |
3.3 |
72.1 |
4719 |
3776 |
|
70 |
Compact round |
10.0 |
9.3 |
0.12 |
3.4 |
75.7 |
5536 |
4214 |
|
95 |
Compact round |
11.7 |
9.3 |
0.12 |
3.5 |
79.6 |
6512 |
4718 |
|
120 |
Compact round |
13.1 |
9.3 |
0.12 |
3.7 |
82.8 |
7441 |
5175 |
|
150 |
Compact round |
14.6 |
9.3 |
0.12 |
3.8 |
86.3 |
8523 |
5692 |
|
185 |
Compact round |
16.3 |
9.3 |
0.12 |
3.9 |
90.2 |
9779 |
6286 |
|
240 |
Compact round |
18.5 |
9.3 |
0.12 |
4.0 |
95.2 |
11681 |
7150 |
|
300 |
Compact round |
20.7 |
9.3 |
0.12 |
4.2 |
100.7 |
13777 |
8114 |
|
400 |
Compact round |
23.8 |
9.3 |
0.12 |
4.4 |
107.9 |
17095 |
9544 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.1 |
1.9 |
0.5 |
3.5 |
78.2 |
7076 |
6132 |
|
70 |
Compact round |
10.0 |
9.3 |
0.1 |
2.0 |
0.8 |
3.6 |
83.3 |
8864 |
7543 |
|
95 |
Compact round |
11.7 |
9.3 |
0.1 |
2.0 |
0.8 |
3.8 |
87.3 |
10094 |
8301 |
|
120 |
Compact round |
13.1 |
9.3 |
0.1 |
2.1 |
0.8 |
3.9 |
90.7 |
11190 |
8925 |
|
150 |
Compact round |
14.6 |
9.3 |
0.1 |
2.2 |
0.8 |
4.0 |
94.4 |
12527 |
9695 |
|
185 |
Compact round |
16.3 |
9.3 |
0.1 |
2.2 |
0.8 |
4.1 |
98.2 |
14003 |
10511 |
|
240 |
Compact round |
18.5 |
9.3 |
0.1 |
2.3 |
0.8 |
4.3 |
103.6 |
16160 |
11629 |
|
300 |
Compact round |
20.7 |
9.3 |
0.1 |
2.4 |
0.8 |
4.4 |
109.1 |
18691 |
13028 |
|
400 |
Compact round |
23.8 |
9.3 |
0.1 |
2.5 |
0.8 |
4.7 |
116.6 |
22446 |
14895 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.1 |
1.9 |
3.15 |
3.7 |
83.9 |
10380 |
9436 |
|
70 |
Compact round |
10.0 |
9.3 |
0.1 |
2.0 |
3.15 |
3.8 |
87.8 |
11519 |
10197 |
|
95 |
Compact round |
11.7 |
9.3 |
0.1 |
2.0 |
3.15 |
3.9 |
91.6 |
12821 |
11028 |
|
120 |
Compact round |
13.1 |
9.3 |
0.1 |
2.1 |
3.15 |
4.0 |
95.0 |
14037 |
11772 |
|
150 |
Compact round |
14.6 |
9.3 |
0.1 |
2.2 |
3.15 |
4.1 |
98.7 |
15552 |
12720 |
|
185 |
Compact round |
16.3 |
9.3 |
0.1 |
2.2 |
3.15 |
4.2 |
102.5 |
17139 |
13646 |
|
240 |
Compact round |
18.5 |
9.3 |
0.1 |
2.3 |
3.15 |
4.4 |
107.9 |
19442 |
14912 |
|
300 |
Compact round |
20.7 |
9.3 |
0.1 |
2.4 |
3.15 |
4.6 |
113.6 |
22224 |
16561 |
|
400 |
Compact round |
23.8 |
9.3 |
0.1 |
2.5 |
3.15 |
4.8 |
120.9 |
26222 |
18671 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.1 |
1.9 |
0.5 |
3.5 |
78.2 |
7076 |
6132 |
|
70 |
Compact round |
10.0 |
9.3 |
0.1 |
2.0 |
0.8 |
3.6 |
83.3 |
8864 |
7543 |
|
95 |
Compact round |
11.7 |
9.3 |
0.1 |
2.0 |
0.8 |
3.8 |
87.3 |
10094 |
8301 |
|
120 |
Compact round |
13.1 |
9.3 |
0.1 |
2.1 |
0.8 |
3.9 |
90.7 |
11190 |
8925 |
|
150 |
Compact round |
14.6 |
9.3 |
0.1 |
2.2 |
0.8 |
4.0 |
94.4 |
12527 |
9695 |
|
185 |
Compact round |
16.3 |
9.3 |
0.1 |
2.2 |
0.8 |
4.1 |
98.2 |
14003 |
10511 |
|
240 |
Compact round |
18.5 |
9.3 |
0.1 |
2.3 |
0.8 |
4.3 |
103.6 |
16160 |
11629 |
|
300 |
Compact round |
20.7 |
9.3 |
0.1 |
2.4 |
0.8 |
4.4 |
109.1 |
18691 |
13028 |
|
400 |
Compact round |
23.8 |
9.3 |
0.1 |
2.5 |
0.8 |
4.7 |
116.6 |
22446 |
14895 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.12 |
2.2 |
37.6 |
1715 |
1402 |
|
70 |
Compact round |
10.0 |
10.5 |
0.12 |
2.2 |
39.2 |
1980 |
1541 |
|
95 |
Compact round |
11.7 |
10.5 |
0.12 |
2.3 |
41.1 |
2313 |
1718 |
|
120 |
Compact round |
13.1 |
10.5 |
0.12 |
2.3 |
42.5 |
2612 |
1860 |
|
150 |
Compact round |
14.6 |
10.5 |
0.12 |
2.4 |
44.2 |
2981 |
2042 |
|
185 |
Compact round |
16.3 |
10.5 |
0.12 |
2.4 |
45.9 |
3387 |
2229 |
|
240 |
Compact round |
18.5 |
10.5 |
0.12 |
2.5 |
48.3 |
4021 |
2519 |
|
300 |
Compact round |
20.7 |
10.5 |
0.12 |
2.6 |
50.9 |
4725 |
2845 |
|
400 |
Compact round |
23.8 |
10.5 |
0.12 |
2.7 |
54.2 |
5820 |
3313 |
|
500 |
Compact round |
26.6 |
10.5 |
0.12 |
2.8 |
59.7 |
7142 |
4009 |
|
630 |
Compact round |
30.1 |
10.5 |
0.12 |
2.9 |
63.4 |
8528 |
4579 |
|
800 |
Compact round |
35.0 |
10.5 |
0.12 |
3.1 |
68.7 |
10521 |
5507 |
|
1000 |
Milliken conductor |
39.5 |
10.5 |
0.12 |
3.2 |
73.6 |
12652 |
6366 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core Cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
3.5 |
78.0 |
5289 |
4345 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
3.6 |
81.7 |
6131 |
4809 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
3.7 |
85.6 |
7134 |
5341 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
3.8 |
88.8 |
8086 |
5821 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
3.9 |
92.3 |
9193 |
6361 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
4.1 |
96.1 |
10476 |
6983 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
4.2 |
101.2 |
12414 |
7883 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
4.4 |
106.7 |
14548 |
8885 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
4.6 |
113.8 |
17917 |
10365 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
1.9 |
0.8 |
3.7 |
85.6 |
8793 |
7849 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
2.0 |
0.8 |
3.8 |
89.5 |
9817 |
8495 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
2.0 |
0.8 |
3.9 |
93.3 |
11036 |
9243 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
2.1 |
0.8 |
4.1 |
96.9 |
12241 |
9976 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
2.2 |
0.8 |
4.2 |
100.6 |
13558 |
10726 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
2.2 |
0.8 |
4.3 |
104.4 |
15085 |
11592 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
2.3 |
0.8 |
4.5 |
109.8 |
17381 |
12850 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
2.4 |
0.8 |
4.6 |
115.3 |
19830 |
14167 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
2.5 |
0.8 |
4.9 |
122.8 |
23689 |
16138 |
|
500 |
Compact round |
26.6 |
10.5 |
0.1 |
2.9 |
0.8 |
5.2 |
131.6 |
26584 |
17145 |
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
2.0 |
3.15 |
3.9 |
90.1 |
11529 |
10585 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
2.1 |
3.15 |
4.0 |
94.0 |
12665 |
11343 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
2.1 |
3.15 |
4.1 |
97.8 |
13996 |
12203 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
2.2 |
3.15 |
4.2 |
101.2 |
15279 |
13013 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
2.3 |
3.15 |
4.3 |
104.9 |
16711 |
13879 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
2.3 |
3.15 |
4.4 |
108.7 |
18411 |
14919 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
2.4 |
3.15 |
4.6 |
114.1 |
20854 |
16323 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
2.5 |
3.15 |
4.8 |
119.8 |
23557 |
17893 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
2.6 |
3.15 |
5.0 |
127.1 |
27594 |
20042 |
Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.
