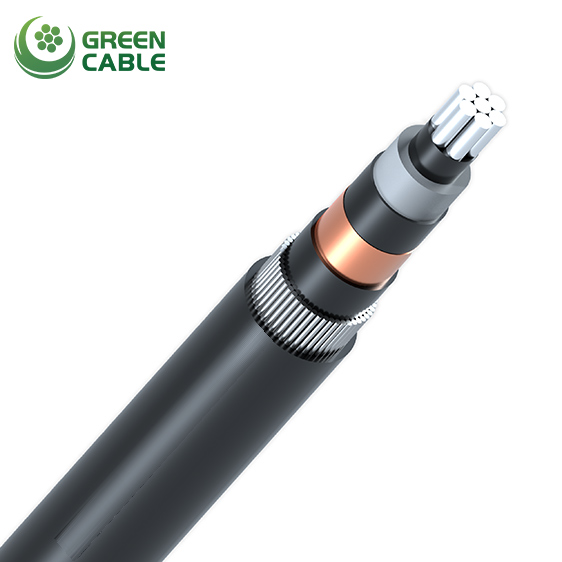

Medium voltage AL/XLPE/SWA/PVC Power Cables

Medium voltage AL/XLPE/SWA/PVC Power Cables

Medium voltage power cables are for the distribution power systems, with the voltages falling usually within the range of 1 kV to 36 kV. They are employed in large commercial buildings and industrial plants, and for the linking of substations with the local distribution networks.Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants. We can proudce many types of medium voltage cables.

Send Massage Get Price

Construction

Voltage: 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV,26/35KV

Conductor : Copper or Aluminum,Class 1 or Class 2,solid or stranded Circular conductors

Conductor screen: semi-conducting compound

Insulation: Cross-linked polyethylene XLPE

Insulation screen: semi-conducting compound

Metallic screen: Copper tape or/and Copper wire

Armored:Steel Wire Armor

Over sheath: Polyvinyl chloride PVC or PE

Standards

IEC 60228, IEC 60502-2

MV Power Cables - Copper Conductor  IEC 60502-2

XLPE Insulated Cable

Single-core

Three-core



YJV (N2XSY)

YJV (N2XSEY)

CU/XLPE/CTS/PVC

YJY (N2XS2Y)

YJY (N2XSE2Y)

CU/XLPE/CTS/PE

YJSV (N2XSY)

YJSV (N2XSEY)

CU/XLPE/CWS&CTS/PVC

YJSY (N2XS2Y)

YJSY (N2XSE2Y)

CU/XLPE/CWS&CTS/PE

YJV62 (N2XSBY)

YJV22 (N2XSEBY)

CU/XLPE/CTS/STA/PVC

YJV63 (N2XSB2Y)

YJV23 (N2XSEB2Y)

CU/XLPE/CTS/STA/PE

YJV72 (N2XSRY)

YJV32 (N2XSERY)

CU/XLPE/CTS/SWA/PVC

YJV73 (N2XSR2Y)

YJV33 (N2XSER2Y)

CU/XLPE/CTS/SWA/PE

MV Power Cables - Aluminum Conductor  IEC 60502-2

XLPE Insulated Cable

Single-core

Three-core



YJLV (NA2XSY)

YJLV (NA2XSEY)

AL/XLPE/CTS/PVC

YJLY (NA2XS2Y)

YJLY (NA2XSE2Y)

AL/XLPE/CTS/PE

YJLSV (NA2XSY)

YJLSV (NA2XSEY)

AL/XLPE/CWS&CTS/PVC

YJLSY (NA2XS2Y)

YJLSY (NA2XSE2Y)

AL/XLPE/CWS&CTS/PE

YJLV62 (NA2XSBY)

YJLV22 (NA2XSEBY)

AL/XLPE/CTS/STA/PVC

YJLV63 (NA2XSB2Y)

YJLV23 (NA2XSEB2Y)

AL/XLPE/CTS/STA/PE

YJLV72 (NA2XSRY)

YJLV32 (NA2XSERY)

AL/XLPE/CTS/SWA/PVC

YJLV73 (NA2XSR2Y)

YJLV33 (NA2XSER2Y)

AL/XLPE/CTS/SWA/PE

3.6/6(7.2) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored wire outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

25

Compact round

6.0

2.5

0.1

1.2

2.0

2.3

42.1

3317

2845

35

Compact round

7.2

2.5

0.1

1.3

2.5

2.5

46.7

4312

3651

50

Compact round

8.4

2.5

0.1

1.3

2.5

2.5

49.3

4972

4028

70

Compact round

10.0

2.5

0.1

1.4

2.5

2.7

53.3

5968

4646

95

Compact round

11.7

2.5

0.1

1.4

2.5

2.8

57.2

7033

5239

120

Compact round

13.1

2.5

0.1

1.5

2.5

2.9

60.6

8072

5807

150

Compact round

14.6

2.5

0.1

1.6

2.5

3.0

64.2

9288

6456

185

Compact round

16.3

2.5

0.1

1.6

2.5

3.1

68.1

10737

7245

240

Compact round

18.5

2.6

0.1

1.7

2.5

3.3

73.9

12869

8339

300

Compact round

20.7

2.8

0.1

1.8

3.15

3.5

81.8

16183

10520

400

Compact round

23.8

3.0

0.1

2.0

3.15

3.8

90.4

20070

12519

500

Compact round

26.6

3.2

0.1

2.1

3.15

4.1

99.3

24131

14692

6(7.2)/10(12) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor

 Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored wire outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

25

Compact round

6.0

3.4

0.1

1.3

2.5

2.5

48.0

4175

3703

35

Compact round

7.2

3.4

0.1

1.3

2.5

2.6

50.8

4733

4072

50

Compact round

8.4

3.4

0.1

1.4

2.5

2.7

53.8

5491

4547

70

Compact round

10.0

3.4

0.1

1.5

2.5

2.8

57.6

6446

5124

95

Compact round

11.7

3.4

0.1

1.5

2.5

2.9

61.5

7530

5737

120

Compact round

13.1

3.4

0.1

1.6

2.5

3.0

64.9

8628

6363

150

Compact round

14.6

3.4

0.1

1.6

2.5

3.1

68.3

9794

6963

185

Compact round

16.3

3.4

0.1

1.7

2.5

3.3

72.6

11326

7834

240

Compact round

18.5

3.4

0.1

1.8

3.15

3.5

79.2

14268

9737

300

Compact round

20.7

3.4

0.1

1.9

3.15

3.6

84.8

16641

10978

400

Compact round

23.8

3.4

0.1

2.0

3.15

3.9

92.3

20362

12811

500

Compact round

26.6

3.4

0.1

2.1

3.15

4.1

99.3

24203

14764

8.7(10,12)/15(17.5) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)



Armored wire outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

25

Compact round

6.0

4.5

0.1

1.4

2.5

2.7

53.3

4803

4331

35

Compact round

7.2

4.5

0.1

1.4

2.5

2.8

56.1

5379

4719

50

Compact round

8.4

4.5

0.1

1.5

2.5

2.9

59.1

6091

5147

70

Compact round

10.0

4.5

0.1

1.5

2.5

3.0

62.8

7088

5766

95

Compact round

11.7

4.5

0.1

1.6

2.5

3.1

66.8

8239

6446

120

Compact round

13.1

4.5

0.1

1.7

2.5

3.2

70.2

9346

7080

150

Compact round

14.6

4.5

0.1

1.7

3.15

3.4

75.2

11431

8599

185

Compact round

16.3

4.5

0.1

1.8

3.15

3.5

79.2

12953

9461

240

Compact round

18.5

4.5

0.1

1.9

3.15

3.7

84.6

15139

10608

300

Compact round

20.7

4.5

0.1

2.0

3.15

3.8

90.1

17591

11928

400

Compact round

23.8

4.5

0.1

2.1

3.15

4.1

97.6

21504

13953

500

Compact round

26.6

4.5

0.1

2.2

3.15

4.3

105.5

25364

15925

12/20 (24) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

35

Compact round

7.2

5.5

0.1

1.5

2.5

2.9

60.8

5934

5273

50

Compact round

8.4

5.5

0.1

1.6

2.5

3.0

63.8

6706

5763

70

Compact round

10.0

5.5

0.1

1.6

2.5

3.1

67.5

7699

6378

95

Compact round

11.7

5.5

0.1

1.7

2.5

3.3

71.7

8932

7139

120

Compact round

13.1

5.5

0.1

1.8

3.15

3.4

76.4

10907

8641

150

Compact round

14.6

5.5

0.1

1.8

3.15

3.5

79.9

12187

9355

185

Compact round

16.3

5.5

0.1

1.9

3.15

3.6

83.9

13742

10250

240

Compact round

18.5

5.5

0.1

2.0

3.15

3.8

89.3

16001

11471

300

Compact round

20.7

5.5

0.1

2.1

3.15

4.0

95.0

18538

12875

400

Compact round

23.8

5.5

0.1

2.2

3.15

4.2

102.3

22314

14762

500

Compact round

26.6

5.5

0.1

2.3

3.15

4.4

110.2

26392

16953



18/30 (36) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

50

Compact round

8.4

8.0

0.1

1.8

3.15

3.5

77.3

9333

8390

70

Compact round

10.0

8.0

0.1

1.8

3.15

3.6

80.9

10396

9075

95

Compact round

11.7

8.0

0.1

1.9

3.15

3.7

85.0

11723

9930

120

Compact round

13.1

8.0

0.1

2.0

3.15

3.8

88.4

12986

10720

150

Compact round

14.6

8.0

0.1

2.0

3.15

3.9

91.8

14220

11388

185

Compact round

16.3

8.0

0.1

2.1

3.15

4.0

95.9

15887

12395

240

Compact round

18.5

8.0

0.1

2.2

3.15

4.2

101.2

18144

13613

300

Compact round

20.7

8.0

0.1

2.3

3.15

4.4

107.0

20761

15097

400

Compact round

23.8

8.0

0.1

2.4

3.15

4.6

114.3

24824

17273

500

Compact round

26.6

8.0

0.1

2.5

3.15

4.8

122.2

29019

19580

21/35 (40.5) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

50

Compact round

8.4

9.3

0.1

1.9

3.15

3.7

83.9

10380

9436

70

Compact round

10.0

9.3

0.1

2.0

3.15

3.8

87.8

11519

10197

95

Compact round

11.7

9.3

0.1

2.0

3.15

3.9

91.6

12821

11028

120

Compact round

13.1

9.3

0.1

2.1

3.15

4.0

95.0

14037

11772

150

Compact round

14.6

9.3

0.1

2.2

3.15

4.1

98.7

15552

12720

185

Compact round

16.3

9.3

0.1

2.2

3.15

4.2

102.5

17139

13646

240

Compact round

18.5

9.3

0.1

2.3

3.15

4.4

107.9

19442

14912

300

Compact round

20.7

9.3

0.1

2.4

3.15

4.6

113.6

22224

16561

400

Compact round

23.8

9.3

0.1

2.5

3.15

4.8

120.9

26222

18671

26/35 (40.5) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor

Insulation thickness (mm)

 Copper tape screen (approximate) (mm)

PVC bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Cross sectional area (mm2)

Structure

Outer diameter (mm)

50

Compact round

8.4

10.5

0.1

2.0

3.15

3.9

90.1

11529

10585

70

Compact round

10.0

10.5

0.1

2.1

3.15

4.0

94.0

12665

11343

95

Compact round

11.7

10.5

0.1

2.1

3.15

4.1

97.8

13996

12203

120

Compact round

13.1

10.5

0.1

2.2

3.15

4.2

101.2

15279

13013

150

Compact round

14.6

10.5

0.1

2.3

3.15

4.3

104.9

16711

13879

185

Compact round

16.3

10.5

0.1

2.3

3.15

4.4

108.7

18411

14919

240

Compact round

18.5

10.5

0.1

2.4

3.15

4.6

114.1

20854

16323

300

Compact round

20.7

10.5

0.1

2.5

3.15

4.8

119.8

23557

17893

400

Compact round

23.8

10.5

0.1

2.6

3.15

5.0

127.1

27594

20042



Related Products

Medium Voltage XLPE Insulated Power Cables

Medium Voltage XLPE Insulated Power Cables

Medium voltage power cables are for the distribution power systems, with the voltages falling usually within the range of 1 kV to 36 kV. They are employed in large commercial buildings and industrial plants, and for the linking of substations with the local distribution networks.Medium voltage power cable for static application in ground, within and […]

Learn More

0.6/1kV XLPE Insulated Power Cables

0.6/1kV XLPE Insulated Power Cables

Cables may be used in power stations, industry and switchgear as well as for urban supply networks, where with low risk of mechanical damage. Suitable for Installation indoors, cable trunking, outdoors and buried in the ground and in duct.

Learn More

0.6/1kV AL/PVC/SWA/PVC Power Cables

0.6/1kV AL/PVC/SWA/PVC Power Cables

Cables may be used in power stations, industry and switchgear as well as for urban supply networks, where with low risk of mechanical damage. Suitable for Installation indoors, cable trunking, outdoors and buried in the ground and in duct.

Learn More

0.6/1kV AL/XLPE/SWA/PVC Power Cables

0.6/1kV AL/XLPE/SWA/PVC Power Cables

Cables may be used in power stations, industry and switchgear as well as for urban supply networks, where with low risk of mechanical damage. Suitable for Installation indoors, cable trunking, outdoors and buried in the ground and in duct.

Learn More

Inquiry

Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.

    • *

    • *

    • *

    Whatsapp

    Whatsapp:008615236188462

    Email

    Email:admin@greencables.com.cn

    WeChat

    WeChat:+8615236188462

    Home Tel Mail Inquiry
