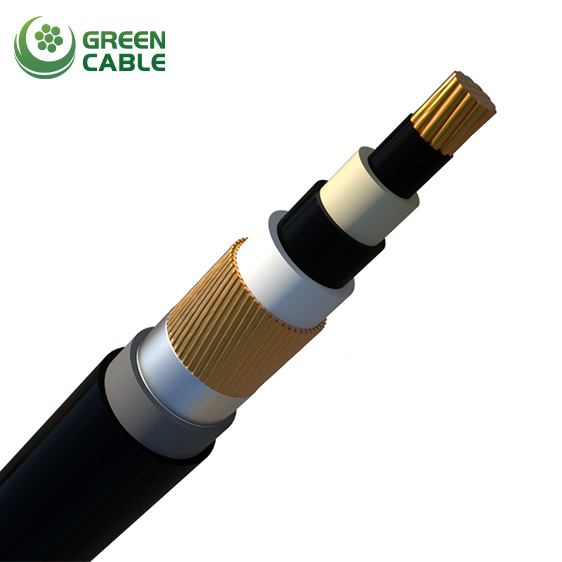

N2XS2Y are single core copper conductor XLPE-insulated medium voltage cables with a medium density polyethylene (MDPE) or in some cases a high density Polyethylene (HDPE) oversheath.
Conductor: Copper Class 2, circular compacted conductor
Conductor screen: Semi-conductive compound
Insulation: TR-XLPE
Insulation screen: Semi-conductive compound
Water blocking tape: Semi-conductive water blocking tape
Metallic screen: Copper wire and copper tape
Water blocking tape: Swelling tape
Amour: Double side Aluminum/PET Foil
Sheath: HDPE
IEC 60502-2, IEC 60228,
UV Resistant: ISO 4892-3
Water Resistant: AD8 to EN 60529
Abrasion and Tear Resistant: EN 60229-4.1
Impact rated to: AG2 EN 60364-5.51
|
Cross Section (mm²) |
Conductor Diameter (mm) |
Insulation Thickness (mm) |
Diameter over Insulation (mm) |
Screen Cross Section (mm²) |
Diameter under Screen (mm) |
Cable Outer Diameter (mm) |
Weight (kg/km) |
Max Pulling Force (kN) |
Min Bending Radius (m) |
|
35 |
7.0 |
4.5 |
17.2 |
16 |
21.3 |
26.9 |
860 |
1.75 |
0.40 |
|
50 |
8.25 |
4.5 |
18.5 |
16 |
22.6 |
28.1 |
1000 |
2.5 |
0.42 |
|
70 |
9.6 |
4.5 |
19.8 |
25 |
23.9 |
29.5 |
1300 |
3.5 |
0.44 |
|
95 |
11.5 |
4.5 |
21.7 |
35 |
25.8 |
31.4 |
1670 |
4.75 |
0.47 |
|
120 |
12.9 |
4.5 |
23.1 |
50 |
27.2 |
32.8 |
2070 |
6 |
0.49 |
|
150 |
14.5 |
4.5 |
24.7 |
50 |
28.8 |
34.4 |
2350 |
7.5 |
0.52 |
|
185 |
16.0 |
4.5 |
26.2 |
50 |
30.3 |
35.9 |
2710 |
9.25 |
0.54 |
|
240 |
18.5 |
4.5 |
28.7 |
50 |
32.8 |
38.4 |
3260 |
12 |
0.58 |
|
300 |
20.5 |
4.5 |
30.7 |
50 |
34.8 |
40.4 |
3850 |
15 |
0.61 |
|
400 |
23.5 |
4.5 |
33.7 |
50 |
37.8 |
43.4 |
4720 |
20 |
0.65 |
|
500 |
26.5 |
4.5 |
37.2 |
50 |
41.5 |
47.1 |
5810 |
25 |
0.71 |
|
630 |
30.3 |
4.5 |
41.3 |
50 |
45.6 |
51.3 |
7160 |
31.5 |
0.77 |
|
800 |
34.6 |
4.5 |
46.0 |
50 |
50.3 |
56.4 |
8860 |
40 |
0.85 |
|
1000 |
38.2 |
4.5 |
49.6 |
50 |
53.9 |
60.2 |
10760 |
50 |
0.90 |
|
Conductor / Screen (mm²) |
Conductor DC Resistance @20°C (Ω/km) |
Conductor AC Resistance @90°C (Ω/km) |
Screen DC Resistance @20°C (Ω/km) |
Screen AC Resistance @90°C (Ω/km) |
Max Electrical Field Stress (kV/mm) |
Capacitance (μF/km) |
Charging Current (A/km) |
Reactance (Ω/km) |
Inductive Reactance (Ω/km) |
|
35/16 |
0.524 |
0.668 |
1.12 |
1.38 |
2.84 |
0.17 |
19.1 |
0.46 |
0.082 |
|
50/16 |
0.387 |
0.494 |
1.12 |
1.38 |
2.72 |
0.19 |
17.2 |
0.51 |
0.076 |
|
70/25 |
0.268 |
0.342 |
0.72 |
0.89 |
2.63 |
0.20 |
15.6 |
0.56 |
0.070 |
|
95/35 |
0.193 |
0.247 |
0.51 |
0.63 |
2.52 |
0.23 |
13.7 |
0.63 |
0.064 |
|
120/50 |
0.153 |
0.196 |
0.36 |
0.44 |
2.46 |
0.25 |
12.7 |
0.69 |
0.060 |
|
150/50 |
0.124 |
0.159 |
0.36 |
0.44 |
2.41 |
0.27 |
11.6 |
0.75 |
0.056 |
|
185/50 |
0.0991 |
0.128 |
0.36 |
0.44 |
2.37 |
0.30 |
10.8 |
0.81 |
0.054 |
|
240/50 |
0.0754 |
0.0978 |
0.36 |
0.44 |
2.31 |
0.33 |
9.6 |
0.90 |
0.050 |
|
300/50 |
0.0601 |
0.0789 |
0.36 |
0.44 |
2.27 |
0.36 |
8.9 |
0.98 |
0.047 |
|
400/50 |
0.0470 |
0.0629 |
0.36 |
0.44 |
2.23 |
0.40 |
7.9 |
1.10 |
0.044 |
|
500/50 |
0.0366 |
0.0505 |
0.36 |
0.44 |
2.17 |
0.44 |
7.2 |
1.21 |
0.042 |
|
630/50 |
0.0283 |
0.0410 |
0.36 |
0.44 |
2.13 |
0.50 |
6.4 |
1.37 |
0.040 |
|
800/50 |
0.0221 |
0.0343 |
0.36 |
0.44 |
2.10 |
0.57 |
5.6 |
1.55 |
0.038 |
|
1000/50 |
0.0176 |
0.0296 |
0.36 |
0.44 |
2.08 |
0.62 |
5.2 |
1.68 |
0.036 |
