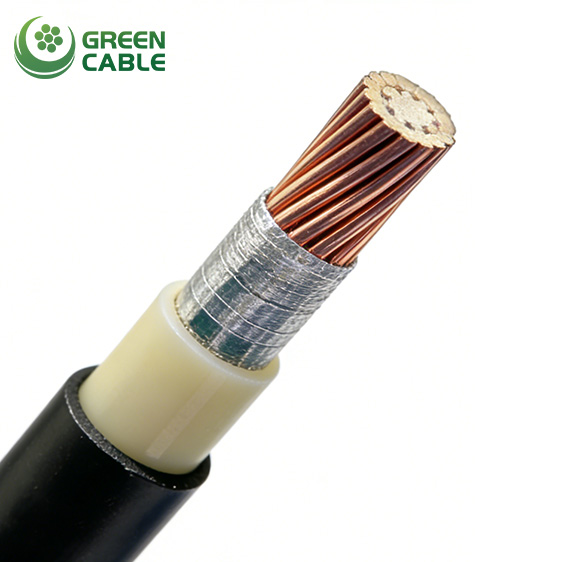

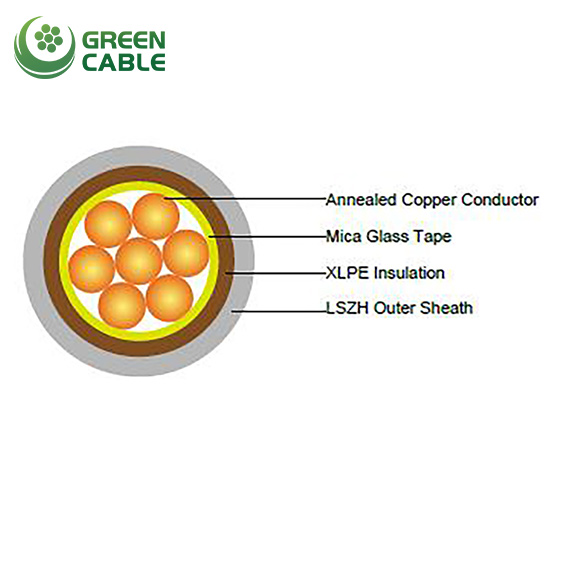

Fire Resistant Cables (IEC 60502-1)

FFX300 1mRZ1-R

No. of Cores × Cross-sectional Area

Conductor Class

Nominal Insulation Thickness

Nominal Sheath Thickness

Approx. Overall Diameter

Approx. Weight

No.×mm²

mm

mm

mm

kg/km

1×1.5

2

0.7

1.4

6.8

58

1×2.5

2

0.7

1.4

7.2

71

1×4

2

0.7

1.4

7.8

92

1×6

2

0.7

1.4

8.3

118

1×10

2

0.7

1.4

9.3

168

1×16

2

0.7

1.4

10.3

238

1×25

2

0.9

1.4

12.0

352

1×35

2

0.9

1.4

13.2

463

1×50

2

1.0

1.4

14.7

606

1×70

2

1.1

1.4

16.7

843

1×95

2

1.1

1.5

18.8

1139

1×120

2

1.2

1.5

20.6

1416

1×150

2

1.4

1.6

22.8

1736

1×185

2

1.6

1.6

25.0

2154

1×240

2

1.7

1.7

28.1

2798

1×300

2

1.8

1.8

30.9

3479

1×400

2

2.0

1.9

34.5

4419

1×500

2

2.2

2.0

38.2

5535

1×630

2

2.4

2.2

43.0

7113

1×800

2

2.6

2.3

47.9

9026

1×1000

2

2.8

2.4

53.0

11302

FFX400 1mRZ1-R

No. of Cores × Cross-sectional Area

Conductor Class

Nominal Insulation Thickness

Nominal Sheath Thickness

Approx. Overall Diameter

Approx. Weight

no.×mm²

mm

mm

mm

kg/km

2 cores

2×1.5

2

0.7

1.8

11.6

139

2×2.5

2

0.7

1.8

12.4

167

2×4

2

0.7

1.8

13.5

211

2×6

2

0.7

1.8

14.6

265

2×10

2

0.7

1.8

16.5

370

2×16

2

0.7

1.8

18.6

515

2×25

2

0.9

1.8

22.0

756

2×35

2

0.9

1.8

24.3

983

2×50

2

1.0

1.8

27.4

1281

2×70

2

1.1

1.8

31.4

1771

2×95

2

1.1

1.9

35.4

2379

2×120

2

1.2

2.0

39.2

2971

2×150

2

1.4

2.2

43.5

3655

2×185

2

1.6

2.3

48.3

4546

2×240

2

1.7

2.5

54.3

5901

2×300

2

1.8

2.6

59.8

7308

2×400

2

2

2.9

67.1

9318

3 cores

3×1.5

2

0.7

1.8

12.2

168

3×2.5

2

0.7

1.8

13.1

208

3×4

2

0.7

1.8

14.3

269

3×6

2

0.7

1.8

15.5

345

3×10

2

0.7

1.8

17.5

495

3×16

2

0.7

1.8

19.8

704

3×25

2

0.9

1.8

23.5

1052

3×35

2

0.9

1.8

26.0

1384

3×50

2

1.0

1.8

29.3

1819

3×70

2

1.1

1.9

33.8

2556

3×95

2

1.1

2.0

38.3

3467

3×120

2

1.2

2.1

42.4

4335

3×150

2

1.4

2.3

46.8

5305

3×185

2

1.6

2.4

52.1

6638

3×240

2

1.7

2.6

58.5

8624

3×300

2

1.8

2.7

64.4

10700

3×400

2

2.0

3.0

72.1

13601

3 cores + 1 core earth conductor

3 cores

1 core

3×16/10

2

0.7

0.7

1.8

20.4

818

3×25/16

2

0.9

0.7

1.8

24.3

1228

3×35/16

2

0.9

0.7

1.8

26.9

1560

3×50/25

2

1.0

0.9

1.8

30.3

2097

3×70/35

2

1.1

0.9

2.0

35.2

2935

3×95/50

2

1.1

1.0

2.1

39.7

3978

3×120/70

2

1.2

1.1

2.3

44.2

5067

3×150/70

2

1.4

1.1

2.4

48.8

6038

3×185/95

2

1.6

1.1

2.6

54.3

7643

3×240/120

2

1.7

1.2

2.8

61.1

9891

3×300/150

2

1.8

1.4

3.0

67.4

12260

3×400/185

2

2.0

1.6

3.2

75.4

15560

4 cores

4×1.5

2

0.7

1.8

13.2

201

4×2.5

2

0.7

1.8

14.2

253

4×4

2

0.7

1.8

15.5

332

4×6

2

0.7

1.8

16.9

431

4×10

2

0.7

1.8

19.2

628

4×16

2

0.7

1.8

21.7

901

4×25

2

0.9

1.8

25.8

1358

4×35

2

0.9

1.8

28.6

1796

4×50

2

1.0

1.8

32.3

2369

4×70

2

1.1

2.0

37.5

3358

4×95

2

1.1

2.1

42.3

4537

4×120

2

1.2

2.3

47.1

5703

4×150

2

1.4

2.4

52.0

6984

4×185

2

1.6

2.6

57.9

8740

4×240

2

1.7

2.8

65.1

11362

4×300

2

1.8

3.0

71.8

14145

4×400

2

2.0

3.2

80.4

17984

Multicore

5×1.5

2

0.7

1.8

14.3

260

5×2.5

2

0.7

1.8

15.4

1544

7×1.5

2

0.7

1.8

15.5

322

7×2.5

2

0.7

1.8

16.7

2116

10×1.5

2

0.7

1.8

19.4

438

10×2.5

2

0.7

1.8

21.1

3000

12×1.5

2

0.7

1.8

20.0

494

12×2.5

2

0.7

1.8

21.8

3665

14×1.5

2

0.7

1.8

21.0

554

14×2.5

2

0.7

1.8

22.9

4135

19×1.5

2

0.7

1.8

23.4

701

19×2.5

2

0.7

1.8

25.5

5556

21×1.5

2

0.7

1.8

24.5

763

21×2.5

2

0.7

1.8

26.8

6128

24×1.5

2

0.7

1.8

27.3

866

24×2.5

2

0.7

1.8

29.8

6998

30×1.5

2

0.7

1.8

28.9

1030

30×2.5

2

0.7

1.8

31.6

8689

40×1.5

2

0.7

1.8

32.4

9942

40×2.5

2

0.7

1.9

35.7

11540

48×1.5

2

0.7

1.8

35.8

11900

48×2.5

2

0.7

1.9

39.4

13813

61×1.5

2

0.7

1.9

39.4

15082

61×2.5

2

0.7

2.0

43.3

17505
