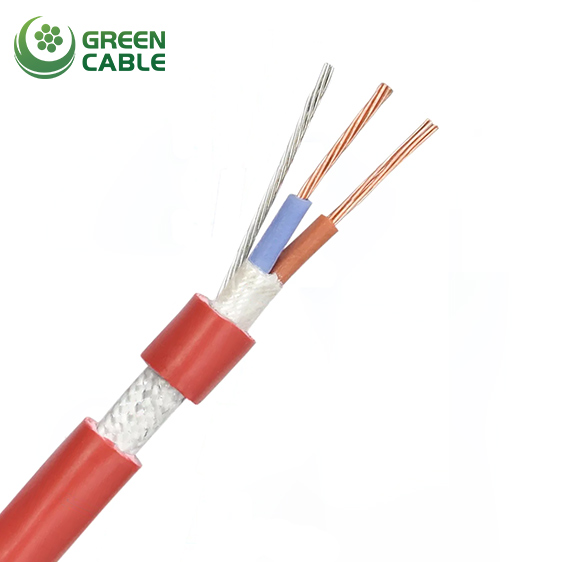

Fire Resistant Cables (BS 7629-1)

300/500V SR Insulated, LSZH Sheathed, Screened Power Cables to BS 7629-1 (2-4 Cores & Multcore) are primarily intended for use in the following applications:BS 5266-1 for emergency lighting of premises. BS 5839-1 for fire detection and fire alarm systems in and around building.BS 5839-8 for voice alarm systems.BS 5839-9 for emergency voice communication systems.

Send Massage Get Price

Construction

Conductor : Copper conductor according to BS EN 60228 class 1/2.

Insulation : Fire resistant special ceramized silicone rubber compound type EI 2 as per BS EN 50363-1.

Screened : One or more metallic or laminated metallic tape(s) shall be applied, either longitudinally or helically or a combination of both, with the metallic element in contact with the uninsulated circuit protective conductor or drain wire.

Circuit Protective Conductor : Uninsulated tinned copper conductor of the same section and class as the

insulated conductors in the two,three and four cores cables.

Sheath : Extruded LSZH type LTS 3 according to BS 7655-6.1.

Insulation Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite.

properties can be offered as option.

Standards

BS 7629-1

300/500V SR Insulated, LSZH Sheathed, Screened Power Cables to BS 7629-1 (2-4 Cores & Multcore)

Conductor	FFX200 05SOZ1-U/R PH30/PH60
No. of Cores × Cross-sectional Area	Conductor Class	Nominal Insulation Thickness	CPC Nominal Cross-sectional Area	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
no.×mm²		mm	mm²	mm	mm	kg/km
2 cores
2x1.0	1/2	0.6	1.0	0.9	8.0	78
2x1.5	1/2	0.7	1.5	0.9	8.5	103
2x2.5	1/2	0.8	2.5	1.0	10.5	150
2x4.0	1/2	0.8	4.0	1.1	12.5	212
3 cores
3x1.5	1/2	0.7	1.5	0.9	9.5	130
3x2.5	1/2	0.8	2.5	1.0	11.5	191
3x4.0	1/2	0.8	4.0	1.1	13.5	273
4 cores
4x1.5	1/2	0.7	1.5	1.0	10.5	165
4x2.5	1/2	0.8	2.5	1.1	12.0	242
4x4.0	1/2	0.8	4.0	1.2	15.0	344
7 cores
7x1.5	1/2	0.7	0.5	1.1	12.5	257
7x2.5	1/2	0.8	0.5	1.2	15.0	568
12 cores
12x1.5	1/2	0.7	0.5	1.2	16.0	414
12x2.5	1/2	0.8	0.5	1.4	20.0	886
19 cores
19x1.5	1/2	0.7	0.5	1.3	19.0	617

300/500V Mica+SR Insulated, LSZH Sheathed, Screened Power Cables to BS 7629-1 (2-4 Cores & Multcore)

Conductor	FFX200E 05mSOZ1-U/R PH120
No. of Cores × Cross-sectional Area	Conductor Class	Nominal Insulation Thickness	CPC Nominal Cross-sectional Area	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
no.×mm²		mm	mm²	mm	mm	kg/km
2 cores
2x1.0	1/2	0.6	1.0	0.9	10.0	103
2x1.5	1/2	0.7	1.5	0.9	10.5	130
2x2.5	1/2	0.8	2.5	1.0	12.5	181
2x4.0	1/2	0.8	4.0	1.1	14.5	246
3 cores
3x1.5	1/2	0.7	1.5	0.9	11.7	166
3x2.5	1/2	0.8	2.5	1.0	13.7	232
3x4.0	1/2	0.8	4.0	1.1	15.7	318
4 cores
4x1.5	1/2	0.7	1.5	1.0	12.9	211
4x2.5	1/2	0.8	2.5	1.1	14.4	294
4x4.0	1/2	0.8	4.0	1.2	17.4	403
7 cores
7x1.5	1/2	0.7	0.5	1.1	15.5	331
7x2.5	1/2	0.8	0.5	1.2	18.0	698
12 cores
12x1.5	1/2	0.7	0.5	1.2	20.2	537
12x2.5	1/2	0.8	0.5	1.4	24.2	1093
19 cores
19x1.5	1/2	0.7	0.5	1.3	24.0	802
