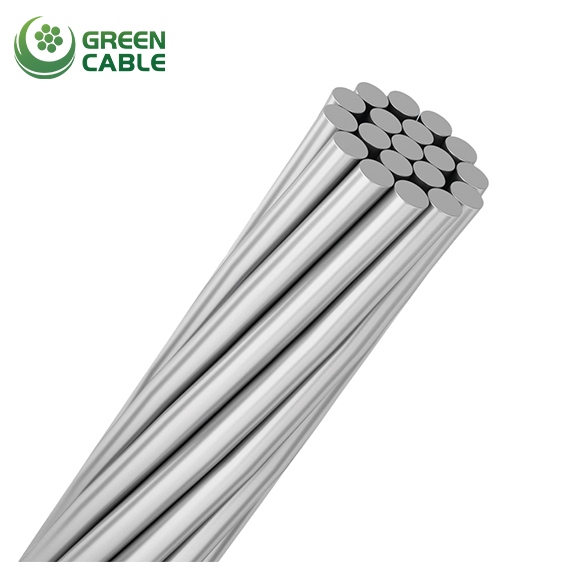

Galvanized Steel Wire Strand

The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay wire or guy wire strands are produced for use with poles, towers, or any other form of guying.

Its low cost and ease of production makes galvanized steel wire ideal for mass produced corrosion resistant wire products,which is indispensable in industrial, agricultural.

Send E-mail Get Price

Construction

Concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.

Zinc-coated grade of steel strand wire /guy wire : Class A ,Class B and class C.

Standards

ASTM A475, BS183:1972.

ASTM A475

Nominal Overall Dia.of Conductor		No. / Dia. of Wire	Approx. Weight	Minimum Breaking Strength of Conductor
Nominal Overall Dia.of Conductor		No. / Dia. of Wire	Approx. Weight	Common Grade		Siemens-Martin Grade		High-Strength Grade		Extra High-Strength Grade
in	mm	No./mm	[kg/km	lbf	kN	lbf	kN	lbf	kN	lbf	kN
1/8	3.18	7/1.04	48	540	2.402	910	4.048	1330	5.916	1830	8.140
5/32	3.97	7/1.32	76	870	3.87	1470	6.539	2140	9.519	2940	13.078
3/16	4.76	7/1.57	109	1150	5.115	1900	8.452	2850	12.677	3990	17.748
3/16	4.76	7/1.65	119
7/32	5.56	3/2.64	131	1400	6.228	2340	10.409	3500	15.569	4900	21.796
7/32	5.56	7/1.83	146	1540	6.85	2560	11.387	3850	17.126	5400	24.020
1/4	6.35	3/3.05	174	1860	8.274	3040	13.523	4730	21.04	6740	29.981
1/4	6.35	3/3.05	174
1/4	6.35	7/2.03	180	1900	8.452	3150	14.012	4750	21.129	6650	29.581
9/32	7.14	3/3.30	204	2080	9.252	3380	15.035	5260	23.398	7500	33.362
9/32	7.14	7/2.36	244	2570	11.432	4250	18.905	6400	28.469	8950	39.812
5/16	7.94	3/3.68	255	2490	11.076	4090	18.193	6350	28.246	9100	40.479
5/16	7.94	7/2.64	305	3200	14.234	5350	23.798	8000	35.586	11200	49.820
5/16	7.94	7/2.77	335
3/8	9.52	3/4.19	328	3330	14.813	5560	24.732	8360	37.187	11800	52.489
3/8	9.52	7/3.05	407	4250	18.905	6950	30.915	10800	48.04	15400	68.503
7/16	11.11	7/3.68	595	5700	25.355	9350	41.591	14500	64.499	20800	92.523
1/2	12.70	7/4.19	770	7400	32.917	12100	53.823	18800	83.627	26900	119.657
1/2	12.70	19/2.54	751	7620	33.895	12700	56.492	19100	84.961	26700	118.768
9/16	14.29	7/4.78	1000	9600	42.703	15700	69.837	24500	108.981	35000	155.688
9/16	14.29	19/2.87	949	9640	42.881	16100	71.616	24100	107.202	33700	14.905
5/8	15.88	7/5.26	1211	11600	51.599	19100	84.961	29600	131.667	42400	188.605
5/8	15.88	19/3.18	1186	11000	48.93	18100	80.513	28100	124.995	40200	178.819
3/4	19.05	19/3.81	1721	16000	71.172	26200	116.543	40800	181.487	58300	259.331
7/8	22.22	19/4.50	2356	21900	97.416	35900	159.691	55800	248.211	79700	354.523
1	25.40	19/5.08	3089	28700	127.664	47000	209.066	73200	325.61	104500	464.839
1	25.40	37/3.63	3065	28300	125.885	46200	205.508	71900	319.827	102700	456.832
1 1/8	28.58	37/4.09	4010	36000	160.136	58900	262.00	91600	407.457	130800	581.827
1 1/4	31.75	37/4.55	4840	44600	198.391	73000	324.72	113600	505.318	162200	721.502

BS183:1972

No./Dia of Wire	Approx. Overall Dia.	Minimum Breaking Strength of Conductor							Approx. Weight
No./Dia of Wire	Approx. Overall Dia.	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx. Weight
No./mm	mm	kN	kN	kN	kN	kN	kN	kN	kg/km
3/1.80	3.9	2.65	3.66						60
3/2.65	5.7	5.80	7.95						130
3/3.25	7.0	8.70	11.95						195
3/4.00	8.6	13.20	18.10						295
4/1.80	4.4	3.55	4.90						80
4/2.65	6.4	7.70	10.60						172
4/3.25	7.9	11.60	15.90						260
4/4.00	9.7	17.60	24.10	35.20					390
5/1.50	4.1	3.10	4.24	6.18					69
5/1.80	4.9	4.45	6.10	8.90					95
5/2.65	7.2	9.65	13.25	19.30					220
5/3.25	8.8	14.50	19.90	29.00					320
5/4.00	10.8	22.00	30.15	43.95					490
7/0.56	1.7	0.60	0.83	1.20		1.70	1.98	2.24	14
7/0.71	2.1	0.97	1.33	1.94		2.75	3.19	3.60	28
7/0.85	2.6	1.39	1.90	2.80		3.95	4.57	5.15	31
7/0.90	2.7	1.55	2.14	3.10		4.45	5.12	5.80	35
7/1.00	3.0	1.92	2.64	3.85		5.50	6.32	7.15	43
7/1.25	3.8	3.01	4.10	6.00		8.55	9.88	11.15	67
7/1.40	4.2	3.75	5.17	7.54	9.16	10.75	12.35	14.00	84
7/RSc	4.3	3.85	5.28	7.70	9.35	11.00	12.65	14.30	86
7/1.60	4.8	4.90	6.75	9.85	11.95	14.10	16.20	18.30	110
7/1.80	5.4	6.23	8.55	12.45		17.80	20.50	23.20	140
7/2.00	6.0	7.70	10.55	15.40		22.00	25.30	28.60	170
7/2.36	7.1	10.70	14.70	21.40		30.60	35.20	39.80	240
7/2.65	8.0	13.50	18.50	27.00		38.60	44.40	50.20	300
7/3.00	9.0	17.30	23.75	34.65		49.50	56.90	64.30	392
7/3.15	9.5	19.10	26.20	38.20		54.55	62.75	70.90	430
7/3.25	9.8	20.30	27.85	40.65		58.05	66.80	75.50	460
7/3.65	11.0	25.60	35.15	51.25		73.25	84.20	95.20	570
7/4.00	12.0	30.90	42.20	61.60		88.00	101.00	114.00	690
7/4.25	12.8	34.75	47.65	69.50		99.30	114.00	129.00	780
7/4.75	14.0	43.40	59.45	86.80		124.00	142.70	161.30	970
19/1.00	5.0	5.22	7.16	10.45		14.92	17.16	19.40	120
19/1.25	6.3	8.16	11.19	16.32		23.32	26.81	30.31	180
19/1.40	7.0	10.24	14.04	20.47		29.25	33.64	38.02	230
19/1.60	8.0	13.37	18.34	26.75		38.20	43.93	49.66	300
19/2.00	10.0	20.90	28.65	41.78	50.74	59.69	68.64	77.60	470
19/2.50	12.5	32.65	44.80	65.29	79.28	93.27	107.30	121.30	730
19/3.00	15.0	47.00	64.50	94.00	114.10	134.30	154.50	174.60	1050
19/3.55	17.8	65.80	90.27	131.60	159.90	188.00	216.30	244.50	1470
19/4.00	20.0	83.55	114.60	167.10	203.00	238.70	274.60	210.40	1870
19/4.75	23.8	117.85	161.60	235.70	286.00	336.70	387.20	437.70	2630

Copper Clad Steel Wire

Copperweld is for use as earth conductor for overhead transmission and distribution lines (OHTL) of electric power. The unique structure of copper clad steel wires provides perfect grounding solution of high strength, good electrical conductivity and property of corrosion-resistant. It is a good replacement for alumoweld and galvanized steel guy wires.

Learn More
