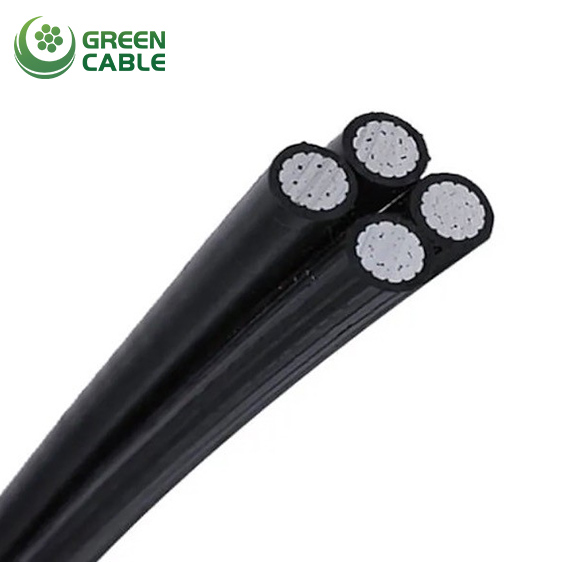

Aerial Bundled Cables (ABC Cables)

The aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.

Send Massage Get Price

Construction

Phase Conductor: Circular stranded, rounded, compacted aluminum conductor

Neutral(Messenger) Conductor: Circular stranded, rounded, compacted aluminum conductor

Insulation: Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)

Standards

NFC 33-209,BS 7870,AS/NZS 3560.1,HD 626 S1,GB 12527

NFC 33-209

No. of Conductor and Cross Section Area	Phase Core				Neutral Core				Street Lighting Core				Complete Cable
	No. and Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. and Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. and Section area	No. of Wires	Diameter of conductor	Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)


mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
2x16	2x16	7	4.8	1.2	-	-	-	-	-	-	-	-	14.2	126
2x25	2x25	7	6.0	1.4	-	-	-	-	-	-	-	-	17.6	194
2x35	2x35	7	7.0	1.6	-	-	-	-	-	-	-	-	20.4	266
2x50	2x50	7	8.1	1.6	-	-	-	-	-	-	-	-	22.6	341
4x16	4x16	7	4.8	1.2	-	-	-	-	-	-	-	-	17.2	252
4x25	4x25	7	6.0	1.4	-	-	-	-	-	-	-	-	21.2	388
4x35	4x35	7	7.0	1.6	-	-	-	-	-	-	-	-	24.6	533
3x25+54.6	3x25	7	6.0	1.4	1x54.6	7	9.45	1.6	-	-	-	-	23.6	496
3x25+54.6+1x16	3x25	7	6.0	1.4	1x54.6	7	9.45	1.6	1x16	7	4.8	1.2	24.9	560
3x25+54.6+2x16	3x25	7	6.0	1.4	1x54.6	7	9.45	1.6	2x16	7	4.8	1.2	26.6	624
3x35+54.6	3x35	7	7.0	1.6	1x54.6	7	9.45	1.6	-	-	-	-	26.1	604
3x35+54.6+1x16	3x35	7	7.0	1.6	1x54.6	7	9.45	1.6	1x16	7	4.8	1.2	27.2	668
3x35+54.6+2x16	3x35	7	7.0	1.6	1x54.6	7	9.45	1.6	2x16	7	4.8	1.2	28.7	732
3x50+54.6	3x50	7	8.1	1.6	1x54.6	7	9.45	1.6	-	-	-	-	28.1	716
3x50+54.6+1x16	3x50	7	8.1	1.6	1x54.6	7	9.45	1.6	1x16	7	4.8	1.2	28.9	780
3x50+54.6+2x16	3x50	7	8.1	1.6	1x54.6	7	9.45	1.6	2x16	7	4.8	1.2	30.3	844
3x70+54.6	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	-	-	-	-	32.2	940
3x70+54.6+1x16	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	1x16	7	4.8	1.2	32.7	1004
3x70+54.6+2x16	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	2x16	7	4.8	1.2	33.8	1068
3x70+54.6+1x25	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	1x25	7	6.0	1.4	33.6	1038
3x70+54.6+2x25	3x70	12	10.0	1.8	1x54.6	7	9.45	1.6	2x25	7	6.0	1.4	35.5	1137
3x70+70	3x70	12	10.0	1.8	1x70	7	10.20	1.5	-	-	-	-	32.1	970
3x70+70+1x16	3x70	12	10.0	1.8	1x70	7	10.20	1.5	1x16	7	4.8	1.2	32.5	1035
3x70+70+2x16	3x70	12	10.0	1.8	1x70	7	10.20	1.5	2x16	7	4.8	1.2	33.6	1099
3x95+70	3x95	19	11.7	1.8	1x70	7	10.20	1.5	-	-	-	-	35.6	1212
3x95+70+1x16	3x95	19	11.7	1.8	1x70	7	10.20	1.5	1x16	7	4.8	1.2	35.7	1276
3x95+70+2x16	3x95	19	11.7	1.8	1x70	7	10.20	1.5	2x16	7	4.8	1.2	36.6	1340
3x120+70	3x120	19	13.0	1.8	1x70	7	10.20	1.5	-	-	-	-	38.0	1439
3x120+70+1x16	3x120	19	13.0	1.8	1x70	7	10.20	1.5	1x16	7	4.8	1.2	37.8	1503
3x120+70+2x16	3x120	19	13.0	1.8	1x70	7	10.20	1.5	2x16	7	4.8	1.2	38.6	1567
3x150+70	3x150	19	14.4	1.7	1x70	7	10.20	1.5	-	-	-	-	40.2	1650
3x150+70+1x16	3x150	19	14.4	1.7	1x70	7	10.20	1.5	1x16	7	4.8	1.2	39.8	1714
3x150+70+2x16	3x150	19	14.4	1.7	1x70	7	10.20	1.5	2x16	7	4.8	1.2	40.4	1778
3x120+95	3x120	19	13.0	1.8	1x95	19	12.50	1.6	-	-	-	-	39.5	1526
3x120+95+1x16	3x120	19	13.0	1.8	1x95	19	12.50	1.6	1x16	7	4.8	1.2	39.5	1590
3x120+95+2x16	3x120	19	13.0	1.8	1x95	19	12.50	1.6	2x16	7	4.8	1.2	39.8	1654
3x150+95	3x150	19	14.4	1.7	1x95	19	12.50	1.6	-	-	-	-	41.7	1736
3x150+95+1x16	3x150	19	14.4	1.7	1x95	19	12.50	1.6	1x16	7	4.8	1.2	41.7	1800
3x150+95+2x16	3x150	19	14.4	1.7	1x95	19	12.50	1.6	2x16	7	4.8	1.2	41.6	1865

BS 7870-5

No. of Core & Size	Phase Core				Neutral Core				Complete Cable
	No. & Section Area	No. of wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. & Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)


mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
1x25	1x25	7	6.0	1.3	-	-	-	-	8.6	96
1x35	1x35	7	7.0	1.3	-	-	-	-	9.6	126
1x50	1x50	19	8.4	1.5	-	-	-	-	11.4	183
1x70	1x70	19	10.0	1.5	-	-	-	-	13.0	236
1x95	1x95	19	11.6	1.7	-	-	-	-	15.0	323
1x120	1x120	19	13.0	1.7	-	-	-	-	16.4	399
2x25	1x25	7	6.0	1.3	1x25	7	6.0	1.3	17.2	192
2x35	1x35	7	7.0	1.3	1x35	7	7.0	1.3	19.2	252
2x50	1x50	19	8.4	1.5	1x50	19	8.4	1.5	22.8	365
2x70	1x70	19	10.0	1.5	1x70	19	10.0	1.5	26.0	472
2x95	1x95	19	11.6	1.7	1x95	19	11.6	1.7	30.0	645
2x120	1x120	19	13.0	1.7	1x120	19	13.0	1.7	32.8	798
3x25	2x25	7	6.0	1.3	1x25	7	6.0	1.3	18.5	288
3x35	2x35	7	7.0	1.3	1x35	7	7.0	1.3	20.6	378
3x50	2x50	19	8.4	1.5	1x50	19	8.4	1.5	24.5	548
3x70	2x70	19	10.0	1.5	1x70	19	10.0	1.5	28.0	708
3x95	2x95	19	11.6	1.7	1x95	19	11.6	1.7	32.3	968
3x120	2x120	19	13.0	1.7	1x120	19	13.0	1.7	35.3	1196
4x25	3x25	7	6.0	1.3	1x25	7	6.0	1.3	20.7	384
4x35	3x35	7	7.0	1.3	1x35	7	7.0	1.3	23.1	504
4x50	3x50	19	8.4	1.5	1x50	19	8.4	1.5	27.5	731
4x70	3x70	19	10.0	1.5	1x70	19	10.0	1.5	31.4	943
4x95	3x95	19	11.6	1.7	1x95	19	11.6	1.7	36.2	1290
4x120	3x120	19	13.0	1.7	1x120	19	13.0	1.7	39.6	1595
5x25	4x25	7	6.0	1.3	1x25	7	6.0	1.3	23.2	480
5x35	4x35	7	7.0	1.3	1x35	7	7.0	1.3	25.9	630
5x50	4x50	19	8.4	1.5	1x50	19	8.4	1.5	30.8	914
5x70	4x70	19	10.0	1.5	1x70	19	10.0	1.5	35.1	1179
5x95	4x95	19	11.6	1.7	1x95	19	11.6	1.7	40.5	1613
5x120	4x120	19	13.0	1.7	1x120	19	13.0	1.7	44.3	1993

AS/NZS 3560.1

No. of Core & Size	Phase Core				Neutral Core				Complete Cable
	No. & Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. & Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	Overall Dia. (Approx.)	Weight (Approx.)


mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
2x16	1x16	7	4.7	1.3	1x16	7	4.7	1.3	14.6	132
4x16	3x16	7	4.7	1.3	1x16	7	4.7	1.3	17.6	263
2x25	1x25	7	6.0	1.3	1x25	7	6.0	1.3	17.2	189
3x25	2x25	7	6.0	1.3	1x25	7	6.0	1.3	18.5	283
4x25	3x25	7	6.0	1.3	1x25	7	6.0	1.3	20.8	378
2x35	1x35	7	7.0	1.3	1x35	7	7.0	1.3	19.2	249
3x35	2x35	7	7.0	1.3	1x35	7	7.0	1.3	20.7	373
4x35	3x35	7	7.0	1.3	1x35	7	7.0	1.3	23.2	497
2x50	1x50	7	8.1	1.5	1x50	7	8.1	1.5	22.2	334
3x50	2x50	7	8.1	1.5	1x50	7	8.1	1.5	23.9	501
4x50	3x50	7	8.1	1.5	1x50	7	8.1	1.5	26.8	668
4x70	3x70	19	10.0	1.5	1x70	19	10.0	1.5	31.4	933
2x95	1x95	19	11.6	1.7	1x95	19	11.6	1.7	30.0	638
4x95	3x95	19	11.6	1.7	1x95	19	11.6	1.7	36.2	1276
4x120	3x120	19	13.0	1.7	1x120	19	13.0	1.7	39.6	1579
4x150	3x150	19	14.6	1.7	1x150	19	14.6	1.7	43.5	1883

HD 626 S1

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
2x 16 RM	1910	2,5	72	147
2x 25 RM	1200	4,0	107	208
2x 35 RM	0,868	5,5	132	277
2x 50 RM	0,641	8,0	165	361
4x 16 RM	1910	2,5	72	286
4x 25 RM	1200	4,0	107	430
4x 35 RM	0,868	5,5	132	553
4x 50 RM	0,641	8,0	165	746
4x 70 RM	0,443	10,7	205	1009
4x 95 RM	0,320	13,7	240	1332
4x 120 RM	0,253	18,6	290	1632
4x 35 + 1x 35 RM	0,868/0,868	5,5/5,5	132/132	694
4x 50 + 1x 25 RM	0,641/1,200	8,0/4,0	165/107	814
4x 50 + 1x 35 RM	0,641/0,868	8,5/5,5	165/132	845
4x 70 + 1x 25 RM	0,443/1,200	10,7/4,0	205/107	1105
4x 70 + 2x 25 RM	0,443/1,200	10,7/4,0	205/107	1217
4x 70 + 1x 35 RM	0,443/0,868	10,7/5,5	205/132	1150
4x 70 + 2x 35 RM	0,443/0,868	10,7/5,5	205/132	1289
4x 95 + 1x 25 RM	0,320/1,200	13,7/4,0	240/107	1438
4x 95 + 1x 35 RM	0,320/0,868	13,7/5,5	240/132	1467
4x 95 + 2x 25 RM	0,320/1,200	13,7/4,0	240/107	1544

GB 12527

No. of Core & Size	Phase Core				Neutral Core			Complete Cable
	No. and Section Area	No. of Wire	Dia.of Conductor (Approx.)	Insulation Thickness	No. and Section Area	No. of Wire	Dia. of Conductor (Approx.)	Overall Dia. (Approx.)	Weight (Approx.)


mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	kg/km
1x10	1x10	7	4.05	1.0	-	-	-	6.1	43
1x16	1x16	7	4.80	1.2	-	-	-	7.2	64
1x25	1x25	7	6.00	1.2	-	-	-	8.4	92
1x35	1x35	7	7.00	1.4	-	-	-	9.8	127
1x50	1x50	7	8.10	1.4	-	-	-	11.1	165
1x70	1x70	19	10.00	1.4	-	-	-	12.8	230
1x95	1x95	19	11.60	1.6	-	-	-	14.8	315
1x120	1x120	19	13.00	1.6	-	-	-	16.2	390
1x150	1x150	19	14.60	1.8	-	-	-	18.2	476
1x185	1x185	37	16.20	2.0	-	-	-	20.2	609
2x10	2x10	7	4.00	1.0	-	-	-	12.2	85
2x16	2x16	7	4.80	1.2	-	-	-	14.4	128
2x25	2x25	7	6.00	1.2	-	-	-	16.8	184
2x35	2x35	7	7.00	1.4	-	-	-	19.6	255
2x50	2x50	7	8.10	1.4	-	-	-	22.2	329
2x70	2x70	19	10.00	1.4	-	-	-	25.6	459
3x10	3x10	7	4.00	1.0	-	-	-	13.1	128
3x16	3x16	7	4.80	1.2	-	-	-	17.4	192
3x25	3x25	7	6.00	1.2	-	-	-	20.3	276
3x35	3x35	7	7.00	1.4	-	-	-	21.1	382
3x50	3x50	7	8.10	1.4	-	-	-	23.9	494
3x70	3x70	19	10.00	1.4	-	-	-	27.6	688
3x95	3x95	19	11.60	1.6	-	-	-	31.9	943
3x120	3x120	19	13.00	1.6	-	-	-	34.9	1170
4x10	4x10	7	4.00	1.0	-	-	-	14.6	171
4x16	4x16	7	4.80	1.2	-	-	-	17.4	256
4x25	4x25	7	6.00	1.2	-	-	-	20.3	368
4x35	4x35	7	7.00	1.4	-	-	-	23.7	509
4x50	4x50	7	8.10	1.4	-	-	-	26.8	659
4x70	4x70	19	10.00	1.4	-	-	-	30.9	917
4x95	4x95	19	11.60	1.6	-	-	-	35.8	1258
4x120	4x120	19	13.00	1.6	-	-	-	39.1	1559
1x16+16	1x16	7	4.80	1.2	1x16	7	5.10	12.3	108
1x25+25	1x25	7	6.00	1.2	1x25	7	6.30	14.7	158
1x35+35	1x35	7	7.00	1.4	1x35	7	7.50	17.3	221
1x50+50	1x50	7	8.40	1.4	1x50	7	9.00	20.1	300
2x16+16	2x16	7	4.80	1.2	1x16	7	5.10	15.5	172
2x25+25	2x25	7	6.00	1.2	1x25	7	6.30	18.1	250
2x35+35	2x35	7	7.00	1.4	1x35	7	7.50	21.1	348
2x50+50	2x50	7	8.30	1.4	1x50	7	9.00	22.4	464
3x16+16	3x16	7	4.80	1.2	1x16	7	5.10	17.4	235
3x25+25	3x25	7	6.00	1.2	1x25	7	6.30	20.3	342
3x35+35	3x35	7	7.00	1.4	1x35	7	7.50	23.7	475
3x50+50	3x50	7	8.10	1.4	1x50	7	9.00	26.8	629
3x70+70	3x70	19	10.00	1.4	1x70	19	10.50	30.9	869
3x95+95	3x95	19	11.60	1.6	1x95	19	12.50	35.7	1200
3x35+16	3x35	7	7.00	1.4	1x16	7	4.80	22.2	445
3x50+25	3x50	7	8.10	1.4	1x25	7	6.00	24.8	585
3x70+35	3x70	19	10.00	1.4	1x35	7	7.00	30.9	815
3x95+50	3x95	19	11.60	1.6	1x50	7	8.10	35.7	1108
4x95+35	4x95	19	11.60	1.6	1x35	7	7.00	39.9	1385
3x120+70	3x120	19	13.00	1.6	1x70	19	10.00	39.1	1399
