CAAI Cable / Self-Supporting Cable

CAAI Cable / Self-Supporting Cable

For air networks of secondary distribution of low-cost electricity in urban and rural areas.

They are installed both in posts and attached to walls, in both cases, with the appropriate accessories.They do not require the use of insulators.

Send E-mail Get Price

Construction

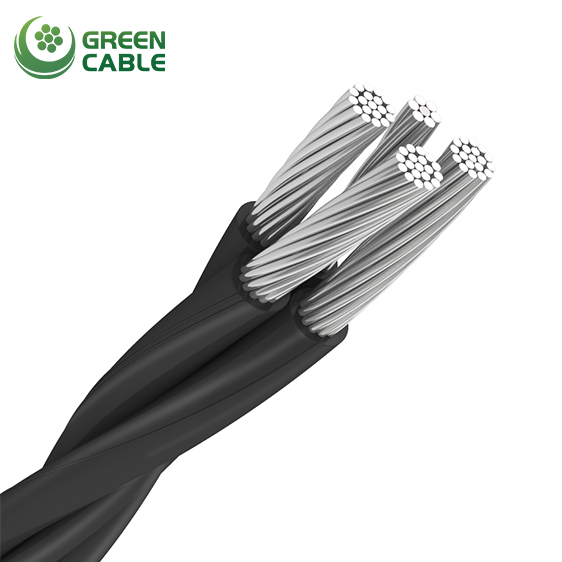

CAAI cable consisted of one or two or three phase conductors(aluminum 1350-H19) pluse one or two lighting conductors(aluminum 1350 H-19), concentrically stranded around the insulated neutral.

Standards

NTP 370.254, ICEA S-76-474



CAAI CABLE - Phase Conductor

Phase conductor (Aluminum Conductor )

Size

Construction of Conductor

XLPE Insulation

Approx.

Max. DC Resistance

No. of Wire

Dia. of Wire

Approx. Conductor Dia.

Nominal Thickness

Insulation Dia.

Weight

 at 20°C of conductor

mm²

No.

mm

mm

mm

mm

kg/km

Ω/km

16

7

1.72

4.8

1.14

7.08

63.35

1.91

25

7

2.18

6

1.14

8.28

91.75

1.2

35

7

2.55

7

1.14

9.28

120.56

0.868

50

7

2.97

8

1.52

11.04

168.55

0.641

70

19

2.2

10

1.52

13.04

235.51

0.443

95

19

2.58

11.6

1.52

14.64

312.79

0.32

120

19

2.88

13

2.03

17.06

413.94

0.253



CAAI CABLE - Neutral Conductor

Phase conductor (Aluminum Conductor )

Size

Construction of Conductor

XLPE Insulation

Approx.

Max. DC Resistance

No. of Wire

Dia. of Wire

Approx. Conductor Dia.

Nominal Thickness

Insulation Dia.

Weight

 at 20°C of conductor

mm²

No.

mm

mm

mm

mm

kg/km

Ω/km

16

7

1.72

4.8

1.14

7.08

63.35

1.91

25

7

2.18

6

1.14

8.28

91.75

1.2

35

7

2.55

7

1.14

9.28

120.56

0.868

50

7

2.97

8

1.52

11.04

168.55

0.641

70

19

2.2

10

1.52

13.04

235.51

0.443

95

19

2.58

11.6

1.52

14.64

312.79

0.32

120

19

2.88

13

2.03

17.06

413.94

0.253



CAAI CABLE - Street Lighting Conductor

Street Lighting Conductor ( Aluminum Conductor )

Size

Construction of Conductor

XLPE Insulation

Approx.

Max. DC Resistance

No. of Wire

Dia. of Wire

Approx. Conductor Dia.

Nominal Thickness

Insulation Dia.

Weight

at 20°C of Conductor

mm²

No.

mm

mm

mm

mm

kg/km

Ω/km

16

7

1.72

4.8

1.14

7.08

63.35

1.91

25

7

2.18

6

1.14

8.28

91.75

1.2



CAAI CABLE - Complete Cable

Completed Cable

Size

Approx. Overall Dia.

Approx.
Weight

Size

Approx. Overall Dia.

Approx.
Weight

 mm²

mm

kg/km

 mm²

mm

kg/km

1x16

7.08

63.4

1x16+16+ND25

14.83

196.2

1x25

8.28

91.8

1x16+16+NA25

16.47

222.7

1x35

9.28

120.6

2x16+16+ND25

16.73

259.6

1x50

11.04

168.6

2x25+16+ND25

18.18

316.4

1x70

13.04

235.5

2x16+16+NA25

18.12

286

1x95

14.64

321.8

2x25+16+NA25

19.56

342.8

1x120

17.06

413.9

2x35+16+NA25

20.77

400.5

1x150

18.46

490.7

3x16+NA25

16.68

284.9

2x16

14.16

126.7

3x25+NA25

20.22

370.1

2x25

16.56

183.5

3x16+16+ND25

18.79

322.9

2x35

18.56

241.1

3x16+16+NA25

20.02

349.4

3x16

15.25

190.1

3x25+16+NA25

21.97

434.6

3x25

17.83

275.3

3x25+2x16+NA25

23.93

499.1

3x35

19.98

361.7

2x35+ND25

17.92

309.5

3x50

23.78

505.7

2x35+NA25

19.55

336

3x70

28.08

706.5

3x35+NA25

22.04

456.5

4x16

17.09

253.4

3x35+16+ND25

22.36

494.6

4x25

19.98

367.1

3x35+16+NA25

23.59

521

1x16+ND25

13.47

131.8

3x35+2x16+NA25

25.44

585.5

1x16+NA25

15.75

158.2

3x50+NA35

25.93

631.9

1x25+NA25

16.95

186.6

3x50+16+NA25

26.38

663.8

2x16+ND25

14.75

195.1

3x50+16+NA35

27.07

696.4

2x16+NA25

16.39

221.5

3x50+25+NA35

27.77

724.7

2x25+ND25

16.47

251.9

3x70+NA35

29.55

832.8

2x25+16

16.97

246.9

3x70+16+NA50

31.53

957.5

2x35+16

18.48

305.7

3x70+25+NA50

32.24

985.8

3x25+16

19.32

339.8

3x95+16+NA50

34.13

1188.3

3x35+16

21.13

426.2

3x95+NA50

33.81

1124.9

3x120+16

36.75

1306.3

3x95+16+NA70

35.02

1252.1

2x25+NA25

18.12

278.4

3x120+16+NA70

38.94

1555.5
