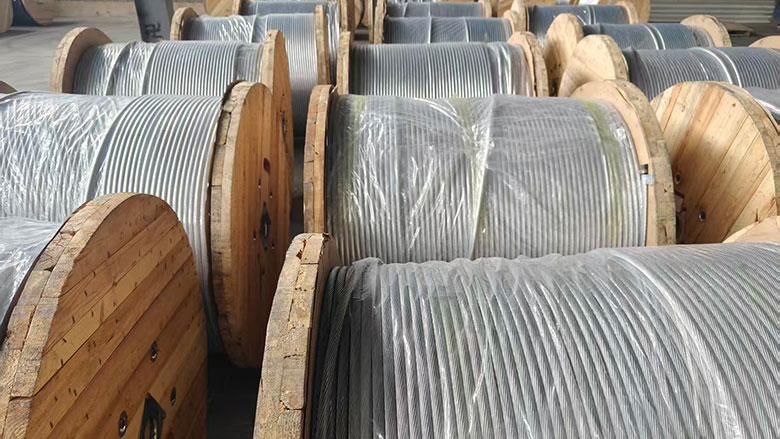

Today, a large amount of high-quality AAAC (all aluminum alloy conductor) and ACSR (Aluminum Conductor Steel Reinforced) conductors produced by Green Cables were successfully delivered after undergoing rigorous factory inspection.
There are main three specification ACSR conductor& AAAC conductor in this project. including
110mm² ACSR Canna conductor
160mm² Partridge ACSR conductor
366mm² AAAC Aster conductor
Above products are Manufactured in accordance with BS EN 50182 standards, the products have a total weight exceeding 300 tons.
1. 110mm² ACSR Canna conductor specification as below:
Aluminum wire: 30
Galvanized Steel wire: 7
Aluminum wire is produced by AL1 according with BS EN 50182 Standard
Galvanized steel wire is used in according with BS EN 50189 Standard. The steel wire is greased by our customer requirement. The Min. Drop point is 120℃.
Greased galvanized steel wire for ACSR conductor is corrosion protection: preventing electrochemical corrosion (bimetallic corrosion) and environmental corrosion.
2. 160mm² ACSR Partridge conductor specification as below:
Aluminum wire: 26
Galvanized Steel wire: 7
Aluminum wire is produced by AL1 according with BS EN 50182 Standard
Galvanized steel wire is used in according with BS EN 50189 Standard. The steel wire is greased by our customer requirement. The Min. Drop point is 120℃.
Greased galvanized steel wire for ACSR conductor is corrosion protection: preventing electrochemical corrosion (bimetallic corrosion) and environmental corrosion.
3. 366mm² AAACAster conductor specification as below:
Aluminum Alloy wire: 37
Aluminum Alloy wire is used in AL4 according with BS EN 50182 Standard.
ACSR conductor is easy to construct and maintain, with low cost and high transmission capacity. It is advantageous for this ACSR to be built across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.
AAAC conductor is extensively used for primary and secondary transmission in bare overhead distribution and transmission lines (11 kV to 800 kV lines) and HV substations. Also, usable in highly polluted industrial areas and coastal regions due to corrosion resistance.
Green Cable is a professional OEM manufacturer in China, primarily producing bare conductors (AAC, AAAC, ACSR, etc.), Aerial Bundled Cable (ABC), Concentric Cable, flame retardant and fire resistant cables.In the overseas market, still now, we have expanded our business to South American countries such as Chile, Colombia, Peru, and Bolivia. Our market also covers the Euro – American regions, including the U.S.A., Germany, Spain, and the U.K., as well as the Middle East, Africa, Southeast Asia, Mongolia, and some other areas. If you have any new inquiries, please do not hesitate to contact us.
