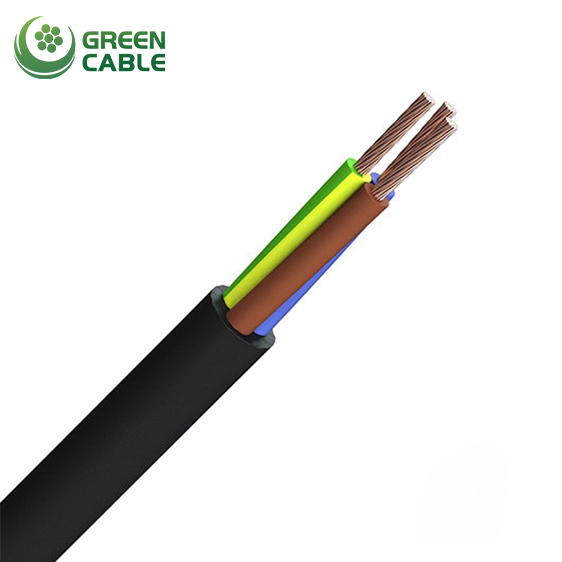

H07RN-F Cable

H07RN-F Cable

These cables are designed to provide high flexibility and have the capacity to withstand weather,oils/greases,mechanical and thermal stresses.

Applications include handling equipment, mobile power supplies, work sites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

Send E-mail Get Price

Construction

Conductor: Flexible bare copper wire / tinned copper wire , class 5.

Insulation: Rubber compound.

Outer sheath: Neoprene Rubber.

Core identification code: Up to 5 cores: colour-coded according to VDE 0293-308.

From 6 cores: black with white numbers.

Protective conductor: G = with GN-YE protective conductor.

X = without protective conductor Jacket color: Black or others as per requirements.



Standards

VDE 0282 Part-4, IEC 60245-4

No. & Nominal Cross
Sectional Area of Conductors

Thickness of Insulation
Specified Value

Thickness of Sheath
Specified Value

Mean Overall Dia.

One Layer

Two Layers

Lower Limit

Upper Limit

Inner Layer

Outer Layer

mm²

mm

mm

mm

mm

mm

mm

1 x 1.5

0.8

1.4

-

-

5.7

7.1

1 x 2.5

0.9

1.4

-

-

6.3

7.9

1 x 4

1.0

1.5

-

-

7.2

9.0

1 x 6

1.0

1.6

-

-

7.9

9.8

1 x 10

1.2

1.8

-

-

9.5

11.9

1 x 16

1.2

1.9

-

-

10.8

13.4

1 x 25

1.4

2.0

-

-

12.7

15.8

1 x 35

1.4

2.2

-

-

14.3

17.9

1 x 50

1.6

2.4

-

-

16.5

20.6

1 x 70

1.6

2.6

1.0

1.6

18.6

23.3

1 x 95

1.8

2.8

1.1

1.7

20.8

26.0

1 x 120

1.8

3.0

1.2

1.8

22.8

28.6

1 x 150

2.0

3.2

1.3

1.9

25.2

31.4

1 x 185

2.2

3.4

1.4

2.0

27.6

34.4

1 x 240

2.4

3.5

1.4

2.1

30.6

38.3

1 x 300

2.6

3.6

1.4

2.2

33.5

41.9

1 x 400

2.8

3.8

1.5

2.3

37.4

46.8

1 x 500

3.0

4.0

1.6

2.4

41.3

52.0

1 x 630

3.0

4.1

1.6

2.5

45.5

57.0

2 x 1.0

0.8

1.3

-

-

7.7

10.0

2 x 1.5

0.8

1.5

-

-

8.5

11.0

2 x 2.5

0.9

1.7

-

-

10.2

13.1

2 x 4

1.0

1.8

-

-

11.8

15.1

2 x 6

1.0

2.0

-

-

13.1

16.8

2 x 10

1.2

3.1

1.2

1.9

17.7

22.6

2 x 16

1.2

3.3

1.3

2.0

20.2

25.7

2 x 25

1.4

3.6

1.4

2.2

24.3

30.7

3 x 1.0

0.8

1.4

-

-

8.3

10.7

3 x 1.5

0.8

1.6

-

-

9.2

11.9

3 x 2.5

0.9

1.8

-

-

10.9

14.0

3 x 4

1.0

1.9

-

-

12.7

16.2

3 x 6

1.0

2.1

-

-

14.1

18.0

3 x 10

1.2

3.3

1.3

2.0

19.1

24.2

3 x 16

1.2

3.5

1.4

2.1

21.8

27.6

3 x 25

1.4

3.8

1.5

2.3

26.1

33.0

3 x 35

1.4

4.1

1.6

2.5

29.3

37.1

3 x 50

1.6

4.5

1.8

2.7

34.1

42.9

3 x 70

1.6

4.8

1.9

2.9

38.4

48.3

3 x 95

1.8

5.3

2.1

3.2

43.3

54.0

3 x 120

1.8

5.6

2.2

3.4

47.4

60.0

3 x 150

2.0

6.0

2.4

3.6

52.0

66.0

3 x 185

2.2

6.4

2.5

3.9

57.0

72.0

3 x 240

2.4

7.1

2.8

4.3

65.0

82.0

3 x 300

2.6

7.7

3.1

4.6

72.0

90.0

4 x 1.0

0.8

1.5

-

-

9.2

11.9

4 x 1.5

0.8

1.7

-

-

10.2

13.1

4 x 2.5

0.9

1.9

-

-

12.1

15.5

4 x 4

1.0

2.0

-

-

14.0

17.9

4 x 6

1.0

2.3

-

-

15.7

20.0

4 x 10

1.2

3.4

1.4

2.0

20.9

26.5

4 x 16

1.2

3.6

1.4

2.2

23.8

30.1

4 x 25

1.4

4.1

1.6

2.5

28.9

36.6

4 x 35

1.4

4.4

1.7

2.7

32.5

41.1

4 x 50

1.6

4.8

1.9

2.9

37.7

47.5

4 x 70

1.6

5.2

2.0

3.2

42.7

54.0

4 x 95

1.8

5.9

2.3

3.6

48.4

61.0

4 x 120

1.8

6.0

2.4

3.6

53.0

66.0

4 x 150

2.0

6.5

2.6

3.9

58.0

73.0

4 x 185

2.2

7.0

2.8

4.2

64.0

80.0

4 x 240

2.4

7.7

3.1

4.6

72.0

91.0

4 x 300

2.6

8.4

3.3

5.1

80.0

101.0

5 x 1.0

0.8

1.6

-

-

10.2

13.1

5 x 1.5

0.8

1.8

-

-

11.2

14.4

5 x 2.5

0.9

2.0

-

-

13.3

17.0

5 x 4

1.0

2.2

-

-

15.6

19.9

5 x 6

1.0

2.5

1.0

1.5

17.5

22.2

5 x 10

1.2

3.6

1.4

2.2

22.9

29.1

5 x 16

1.2

3.9

1.5

2.4

26.4

33.3

5x25

1.4

4.4

1.7

2.7

32.0

40.4
