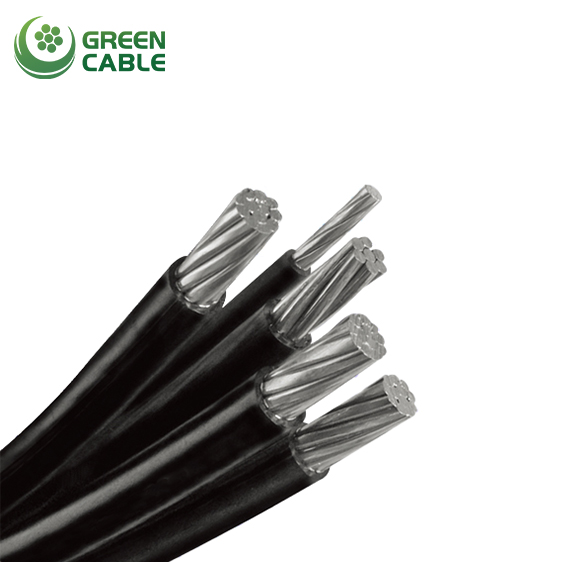

Cable Aluminio Preensamblado

For use in overhead distribution system at 600/1000 volts or less, as the connection from the secondary power line or pole mounted transformer to the service head or entrance conductors at buildings. 2. The neutral core are designed to be bare or insulated aluminum alloy 6201-T81 conductor to perform as supporting core for overhead installation.

Send E-mail Get Price

Construction

Pre-assembled cables are constructed of three insulated conductors: one insulated neutral conductor, which may be AAACo ACSR, and one insulated pilot conductor, twisted together. The phase and pilot conductors are constructed of 1350-H19 aluminum alloy wire, respectively, stranded concentrically. They are covered with a uniform layer of black cross-linked polyethylene (XLPE), resistant to moisture, heat, and sunlight. They are packaged in reels in lengths tailored to customer requirements.

Standards

ICEA S 76-474. NTC 5346. ASTM B398/399/231

CALIBRE	CONDUCTOR DE FASE				CONDUCTOR NEUTRO				PESO TOTAL APFO⁰0MAD0	CAPACIDAD DE CONDUCCON
CALIBRE	#HILDS	DLAMETRO	ESPESOR DE AISLAMIENTO	DLAMETRO TOTAL	#HILCS	DIAMETFO	ESPESOR DE AISLAMIENTO	DLAMETRO TOTAL	PESO TOTAL APFO⁰0MAD0	ENTERRADO	EN DUCTO
AWG	cantidad	mm	mm	mm	cantidad	mm	mm	mm	kg/km	A	A
CABLE DE ALUMINIO PREENSAMBLADO AAC+AAAC 600V
2×2+2	7	247	114	969	7	247	114	969	390.3	165	120
202+1/D	7	247	114	969	7	312	152	124	470.7	165	120
2X1/0+1/0	7	312	152	124	7	312	152	124	6,319	215	160
2X2/0+1/0	7	351	152	13,57	7	312	152	12,4	7,277	245	180
2X2/0+2/0	7	351	152	1,357	7	351	152	1,357	7,754	245	180
2X3/0+1/0	7	393	152	1,483	7	312	152	124	8,419	280	205
2X3/0+2/0	7	393	152	1,483	7	351	152	13,57	8,897	280	205
3X2+2	7	247	114	969	7	247	114	9,69	5,205	155	115
3X1/0+1/0	7	312	152	124	7	312	152	124	8,427	200	150
3X2/0+1/0	7	351	152	1,357	7	312	152	124	9,864	225	170
3X3/0+1/0	7	393	152	1,483	7	312	152	124	11,578	250	195
CABLE DE ALUMINIO PREENSAMBLADO AAC+ACSR 600V
2X2+2	7	247	114	969	6+1	268	114	1,032	4,236	165	120
202+1/D	7	2,47	1,14	9,69	6+1	337	152	13,15	534,2	165	120
2X1/0+1/0	7	312	152	124	6+1	337	152	13,15	683,D	215	160
2X2/0+1/0	7	351	152	1,357	6+1	337	152	1,315	7,719	245	180
2X2/0+2/0	7	351	152	1,357	6+1	378	152	1,438	8,376	245	180
2X3/0+1/0	7	393	152	1,483	6+1	337	152	1,315	878,D	250	195
3X2+2	7	247	114	969	6+1	268	114	1,032	5,458	165	120
3X1/0+1/0	7	312	152	124	6+1	337	152	1,315	8,810	215	160
3X2/0+1/0	7	351	152	1,357	6+1	337	152	1,315	10,145	245	180
3X3/0+1/0	7	393	152	14,83	6+1	337	152	13,15	11,735	250	195
mm2	cantidad	mm	mm	mm	cantidad	mm	mm	mm	kg/km	A	A
CABLE DE ALUMINIO PREENSAMBLADD AAC+AAAC600V
2x5D+50	7	302	152	121	7	302	152	121	6,079	215	160
